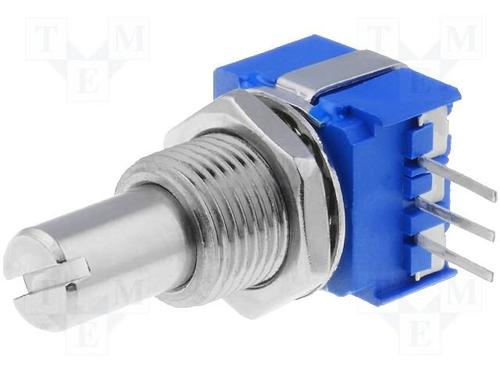

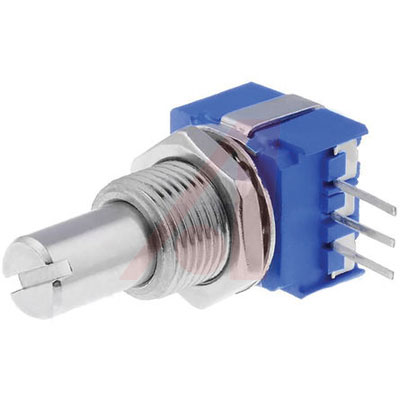

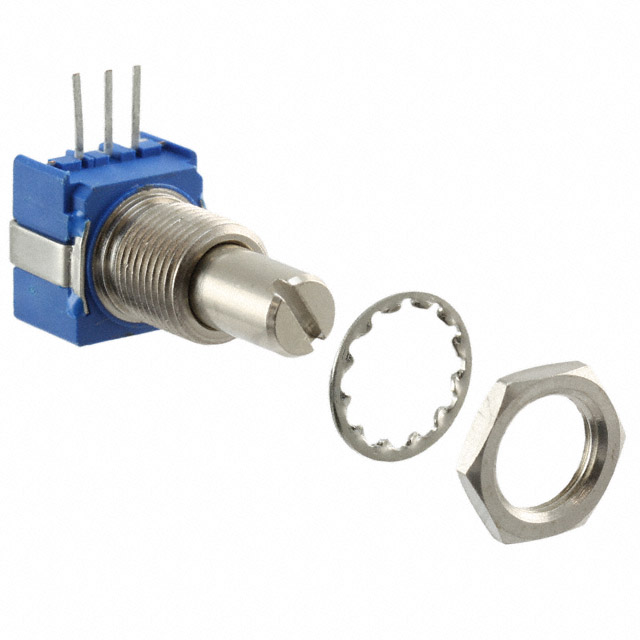

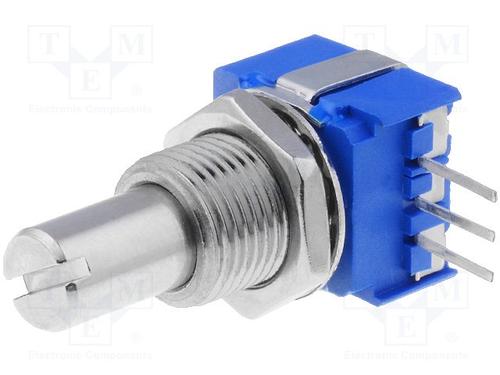

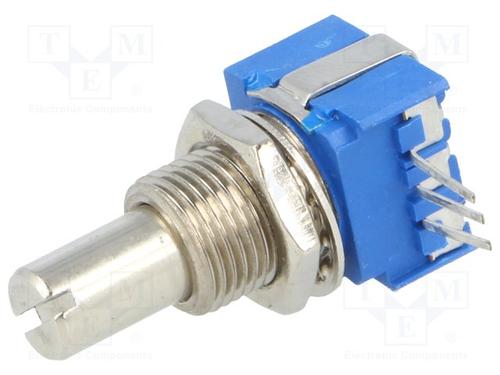

Res Conductive Plastic POT 5KΩ 20% 0.5W1/2W 1Elec/1MechTurn 6.35mm 27.94 X 12.5 X 13.25mm Pin Panel Mount/Through Hole
Model 51 is a 1⁄2" square, single-turn, modular panel control that gives the versatility of larger modular panel controls in a small package. Metal bushing and metal shaft are standard.- .
- *Shaft Type:** **B24:** 1⁄4" Dia. × 3⁄4", **B28:** 1⁄4" Dia. × 7⁄8", **E24:** 1⁄8" Dia. × 3⁄4" and **E28:** 1⁄8" Dia. × 7⁄8".
**Features:**
* Operating Temperature Range: +1°C to +125°C
* Tracking: 3 dB
艾睿:
Not sure what resistance value you need? No problem, applying this 51AAA-B24-B13L potentiometer from Bourns will allow you to change the resistance in a matter of seconds. This product has a resistance value of 5K Ohm. This durable part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±1000 ppm/°C. This product is 27.94 mm long, 13.25 mm tall and 12.5 mm deep. This device utilizes conductive plastic technology. This part has an operating temperature of 1 to 125 °C. It has a tolerance of 20%. The 51AAA-B24-B13L part has a pin termination style.
Allied Electronics:
Pot; Cnd Pl; Rest 5 Kilohms; Panel; 1 Turn; Linear; Pwr-Rtg 0.5W; Shaft Dia 0.25In
TME:
Potentiometer: shaft; single turn; 5kΩ; 500mW; ±20%; 6.35mm; linear
Verical:
Res Conductive Plastic POT 5K Ohm 20% 0.5W1/2W 1Elec/1MechTurn 6.35mm 27.94 X 12.5 X 13.25mm Pin Panel Mount/Through Hole
MASTER:
Res Conductive Plastic POT 5K Ohm 20% 0.5W1/2W 1Elec/1MechTurn 6.35mm 27.94 X 12.5 X 13.25mm Pin Panel Mount/Through Hole
Electro Sonic:
Res Conductive Plastic POT 5K Ohm 20% 0.5W1/2W 1Elec/1MechTurn 6.35mm 27.94 X 12.5 X 13.25mm Pin Panel Mount/Through Hole
