53C11MEG

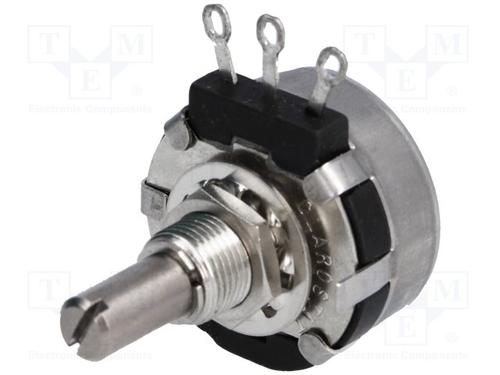

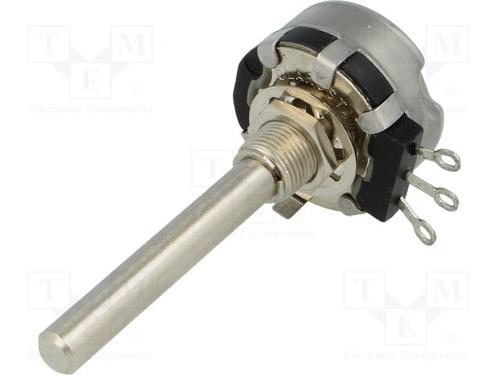

Res Conductive Plastic POT 1M Ohm 20% 2W 1Elec/1MechTurn 6.35mm 65.09 X 27.78 X 36.12mm Solder Lug Panel Mount

Crafted of the finest materials available to insure long, reliable service. Provides extra long life with very low noise level. Rated 2 watts. Precision construction is completely enclosed. Conductive plastic element. RV4L and 53C2 designate 5⁄8" screwdriver slotted shaft FMS with 1⁄2" split locking bushing. RV4N and 53C3 designate 7⁄8" screwdriver slotted shaft FMS with 3⁄8" long bushing. 53C1 designates 2" long round shaft FMS with 3⁄8" long bushing. All have 1⁄4" diameter shaft.

.

*Average Shipping Weight:** 4 Oz.

**Specifications.** **Resistance Tolerance: **100 to 1 Meg — ±10%; over 1 Meg — ±20%. **Rotation:** 312° ±3%. **End Resistance:** Per MIL-R-94. **Working Voltage:** 500 VDC across end terminals. Linear taper.
