POMONA 5188 测试线, 微型采集卡, BNC插座至钩式夹 x 2, 60 V, 136.52 mm

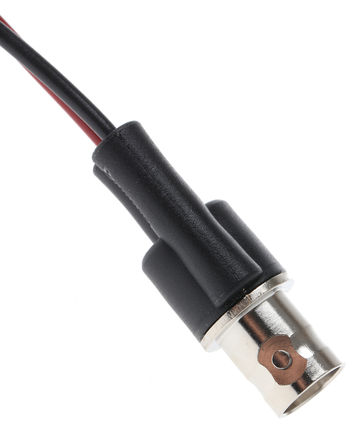

The is a Test Lead with BNC female to Micrograbber® test clips. The BNC with nickel-plated brass, gold-plated beryllium copper centre contact, 20AWG PVC wire. The Micro grabber test clip with gold-plated beryllium copper contact, stainless steel spring, glass filled nylon insulation. BNC connector and Micro grabber test clip cap are moulded directly onto the wire for pull strength durability and dust and moisture resistance. Micro grabber test clip hook is Beryllium Copper for superior strength.
线规 20 AWG
额定电压DC 60.0 V
工作温度Max 55 ℃
额定电压 60 V
长度 178 mm
脚长度 136.52 mm
电缆长度 137.16 mm
颜色 Black, Red
触点材质 Beryllium Copper
绝缘材质 Nylon
工作温度 55 ℃
外壳材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 工业, Test & Measurement, 测试与测量
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8544429000
