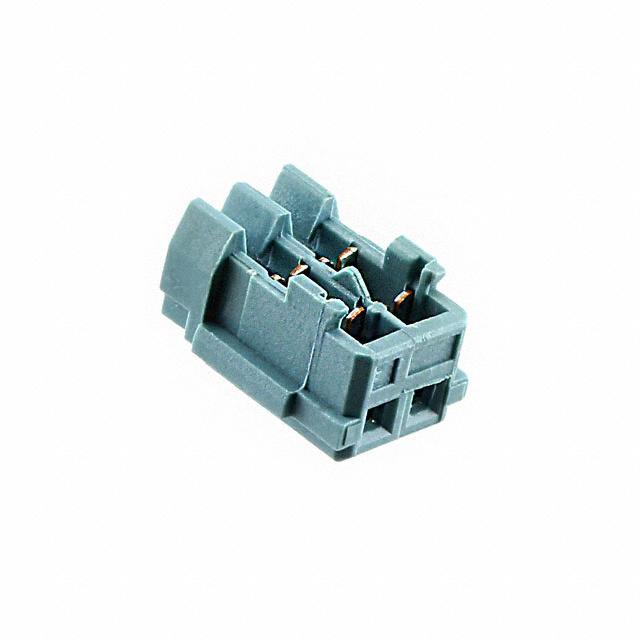

5-353293-2

Conn IDC Connector RCP 2POS 1.5mm IDT ST Cable Mount Bag/Box

2 Position Rectangular Receptacle Connector IDC Tin 26-28 AWG

得捷:
CONN RCPT 2POS IDC 26-28AWG TIN

艾睿:
Thanks to TE Connectivity&s;s idc connector 5-353293-2 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This RCP connector&s;s 2 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a straight body orientation. This is a 1-row connector. It has a receptacle type gender. Its pitch is 1.5 mm. It has a maximum voltage rating of 50 VDC|50VAC. This device has a maximum current rating of 2 A/contact. 5-353293-2 is housed in blue nylon. This connector has an operating temperature of -30 to 105 °C. It uses the idt termination method. This product is 4.5 mm long, 3.6 mm tall and 6 mm deep.

安富利:
Conn IDC Connector RCP 2 POS 1.5mm IDT ST Cable Mount Bag/Box

Verical:
Conn Wire to Board F 2 POS 1.5mm IDT ST Cable Mount Bag/Box

MASTER:
Conn Wire to Board F 2 POS 1.5mm IDT ST Cable Mount Bag/Box

Powell:
AMP Common Termination Connector System

Electro Sonic:
MINI CT MT REC ASSY 2P BLUE
