5-102398-1

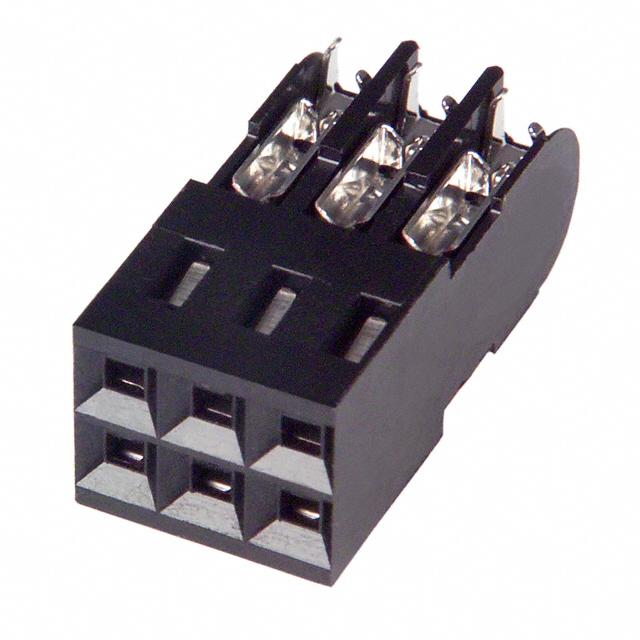

Conn IDC Connector RCP 6POS 2.54mm IDT ST Cable Mount

6 Position Rectangular Receptacle Connector IDC Gold 22-26 AWG

得捷:
CONN RCPT 6POS IDC 22-26AWG GOLD

艾睿:
Use this idc connector 5-102398-1 header connector from TE Connectivity where IDC ribbon cables are used. This RCP connector&s;s 6 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a receptacle type gender. This device has a maximum current rating of 3 A/contact. The component will be shipped in tray format. This product is 7.62 mm long, 6.1 mm tall and 15.24 mm deep. This connector has an operating temperature of -65 to 105 °C. 5-102398-1 is housed in black polybutylene terephthalate. It uses the idt termination method.

Chip1Stop:
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount

Verical:
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Tray

Newark:
# AMP - TE CONNECTIVITY  5-102398-1  Wire-To-Board Connector, 2.54 mm, 6 Contacts, Receptacle, AMPMODU MT Series, IDC / IDT, 2 Rows

MASTER:
AMPMODU MT, RECEPTACLE ASSEMBLY STANDARD-PRESSURE CONTACTS FOR 22-26 AWG WIRE SIZE

Powell:
.100 AMPMODU Headers, Housings & Contacts

Electro Sonic:
06 AMPMODU MT ASSY DR.100CL SN
