5-103975-5

集管和线壳 4X6 RCPT SR PLAIN .100CL

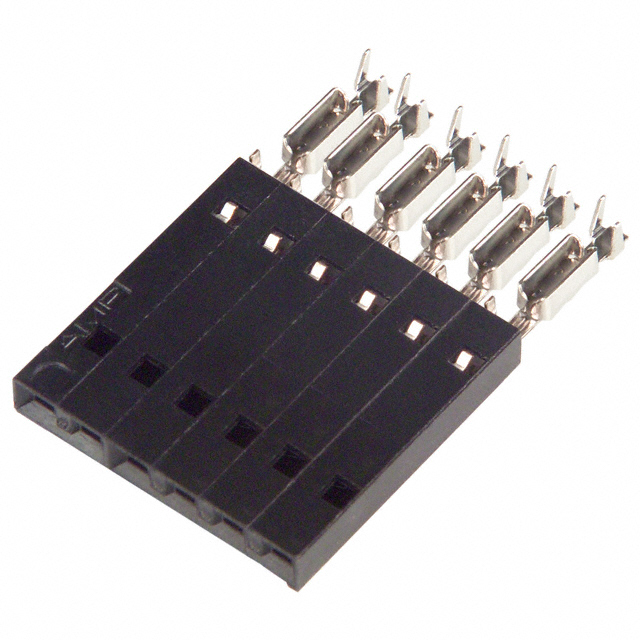

6 Position Rectangular Receptacle Connector IDC Gold 22-26 AWG

得捷:
CONN RCPT 6POS IDC 22-26AWG GOLD

贸泽:
集管和线壳 4X6 RCPT SR PLAIN .100CL

艾睿:
This idc connector 5-103975-5 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This RCP connector&s;s 6 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a receptacle type gender. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 5-103975-5 is housed in black thermoplastic. This product is 27.88 mm long, 2.49 mm tall and 15.24 mm deep. This connector has an operating temperature of -65 to 105 °C. It uses the idt termination method.

安富利:
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip

Chip1Stop:
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip

Powell:
.100 AMPMODU Headers, Housings & Contacts
