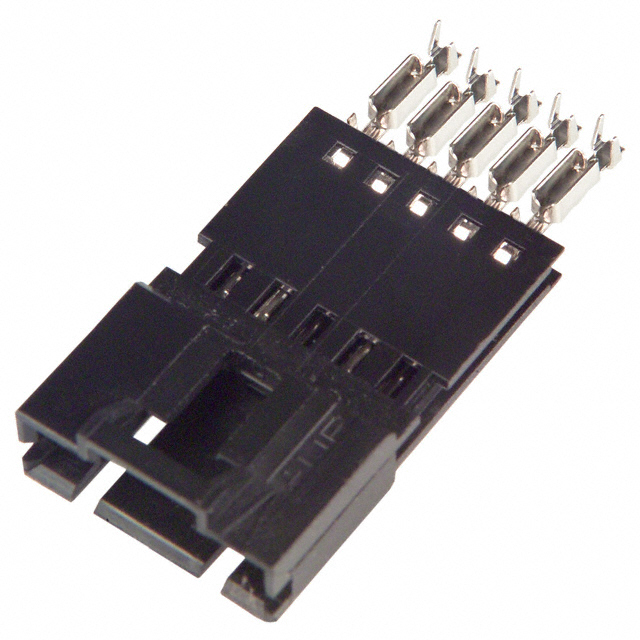

5-103946-4

AMP FROM TE CONNECTIVITY  5-103946-4  线至板连接器, 公, 5路, 2.54MM

5 位置矩形连 插头 IDC 镀金 22-26 AWG

得捷:
CONN PLUG 5POS IDC 22-26AWG GOLD

e络盟:
线至板连接器, 公, 5路, 2.54MM

艾睿:
Think of TE Connectivity&s;s idc connector 5-103946-4 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This PIN connector&s;s 5 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 12.36 mm long, 6.6 mm tall and 24.13 mm deep. It uses the idt termination method. 5-103946-4 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C.

安富利:
Conn IDC Connector PIN 5 POS 2.54mm IDT ST Cable Mount Strip

Chip1Stop:
Conn IDC Connector PIN 5 POS 2.54mm IDT ST Cable Mount Strip

Verical:
Conn IDC Connector PIN 5 POS 2.54mm IDT ST Cable Mount Tube

Newark:
# AMP - TE CONNECTIVITY  5-103946-4  Wire-To-Board Connector, 2.54 mm, 5 Contacts, Plug, AMPMODU Series, IDC / IDT, 1 Rows

MASTER:
SHROUDED PIN ASSY, AMPMODU MTE, SINGLE ROW, .100 CL, POLARIZED, W/ LATCH WINDOWS, FOR NO 22-NO 26 AWG WIRE SIZE, STRIP FORM

Powell:
.100 AMPMODU Headers, Housings & Contacts

Electro Sonic:
4X5 MTE SHRD PIN SR POL .100CL
