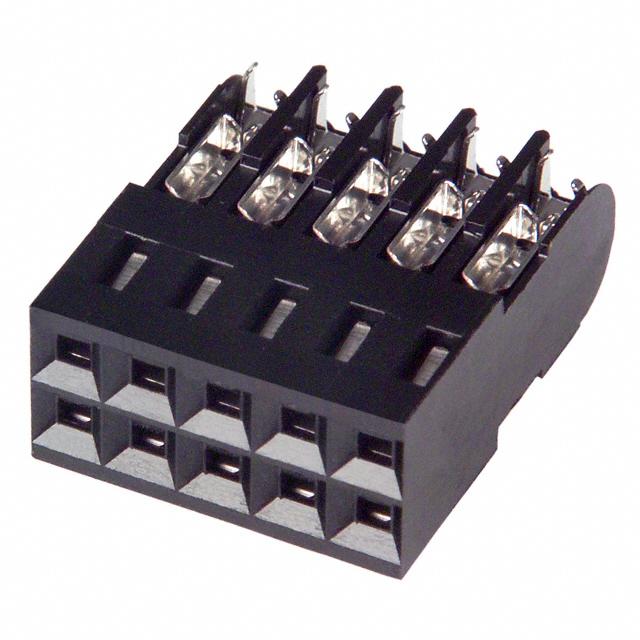

5-102398-3

Conn IDC Connector RCP 10POS 2.54mm IDT ST Cable Mount

10 Position Rectangular Receptacle Connector IDC Gold 22-26 AWG

得捷:
CONN RCPT 10P IDC 22-26AWG GOLD

艾睿:
Support physical configuration options for jumper posts by mounting this idc connector 5-102398-3 header connector from TE Connectivity. This RCP connector&s;s 10 contacts that are made out of copper alloy and plated with gold over nickel. It has a receptacle type gender. It has a straight body orientation. This is a 2-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. The item will be shipped in tray orientation. It uses the idt termination method. 5-102398-3 is housed in black polybutylene terephthalate. This product is 12.7 mm long, 6.1 mm tall and 15.24 mm deep. This connector has an operating temperature of -65 to 105 °C.

安富利:
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount

Chip1Stop:
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Tray

Verical:
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Tray

Newark:
Wire-To-Board Connector, 2.54 mm, 10 Contacts, Receptacle, AMPMODU Series, IDC / IDT, 2 Rows

MASTER:
AMPMODU MT, RECEPTACLE ASSEMBLY STANDARD-PRESSURE CONTACTS FOR 22-26 AWG WIRE SIZE

Powell:
.100 AMPMODU Headers, Housings & Contacts

Electro Sonic:
10 AMPMODU MT ASSY DR .100CL
