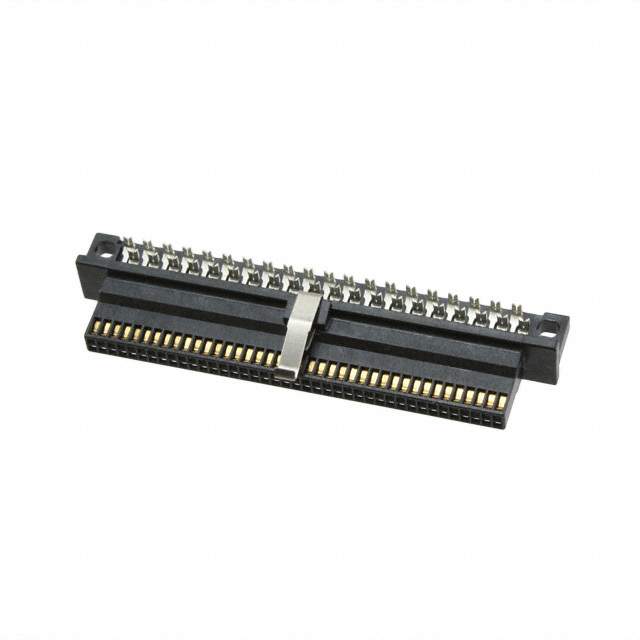

5-104892-8

Conn IDC Connector RCP 80POS 1.27mm IDT ST Cable Mount Tube

80 位置矩形连 插座 IDC 镀金 28AWG

得捷:
CONN RCPT 80POS IDC 28AWG GOLD

艾睿:
Thanks to TE Connectivity&s;s idc connector 5-104892-8 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This RCP connector&s;s 80 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a receptacle type gender. This is a 2-row connector. It has a maximum voltage rating of 30 VAC. It has a straight body orientation. Its pitch is 1.27 mm. This device has a maximum current rating of 5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 59.13 mm long, 17.56 mm tall and 17.56 mm deep. 5-104892-8 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C. It uses the idt termination method.

安富利:
Conn IDC Connector RCP 80 POS 1.27mm IDT ST Cable Mount Tube

Chip1Stop:
Conn IDC Connector RCP 80 POS 1.27mm IDT ST Cable Mount Tube

Verical:
Conn Socket Strip RCP 80 POS 1.27mm IDT ST Cable Mount Box/Tube

MASTER:
AMPMODU 50/50 GRID CABLE CONN. ASSY WITH LATCH

Powell:
.050 Inch AMPMODU 50/50 Grid

Online Components:
80 50/50 GRID RCPT W/LTCH LF

Electro Sonic:
80 50/50 GRID RCPT W/LTCH LF
