502352-0600

MOLEX  502352-0600  线至板连接器, DuraClik 502352系列, 6 触点, 针座, 2 mm, 表面安装　, 1 排

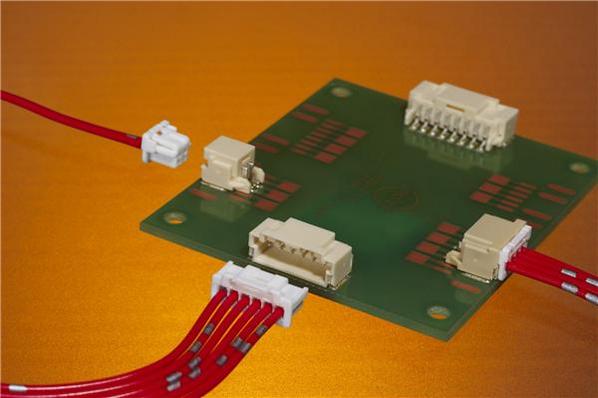

The DuraClik 502352 series Wire-to-board Right Angle Header has tin-plated copper alloy contacts with surface mount termination. This 502352 series PCB header is made of polyamide, mates with DuraClik™ crimp housings 502351, 560123, 505151, suitable for signal and wire-to-board applications. DuraClik connector is a 2.00mm pitch, unsealed, wire-to-board connection system. For signal current of 3.0A this system is designed to provide space savings and superior performance for high-vibration and high temperature applications. The enhanced versions of DuraClik are a secondary locking feature with an Independent Secondary locking ISL or a Terminal Positioning Assurance TPA to meet changing market requirements of our customers.

.

Positive inner-lock design - Provides space savings and prevents latch breakage from wire tangling

.

Click sound when mated - Audible mating confirmation

.

Secure PCB retention using a shock-proof SMT design with wide solder tabs nails

.

Enclosed terminal design - Protects contact against dust and debris

.

Open area for pick-and-place assembly

.

High-temperature terminal material

.

Natural colour

.

3A Current rating per contact

.

125V Voltage rating
