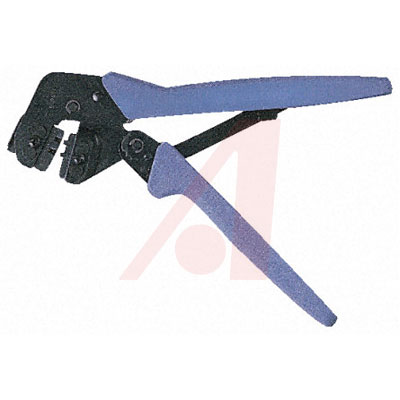

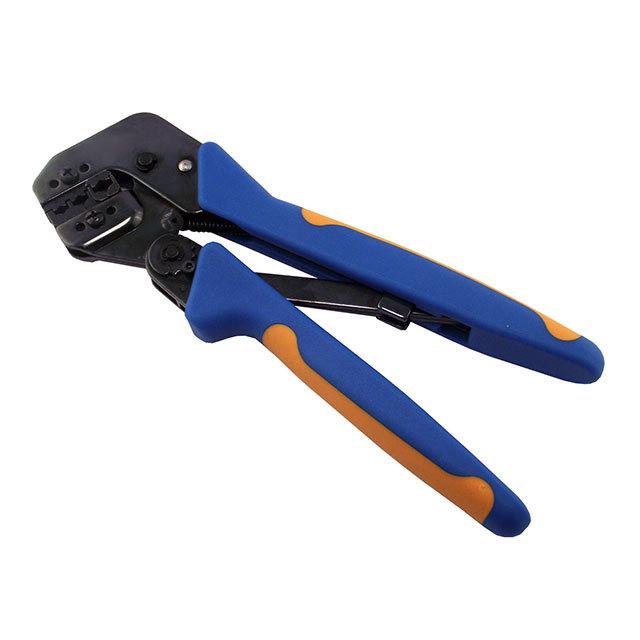

AMP FROM TE CONNECTIVITY 58535-1 压接工具, 棘轮, AMP FFC Wire 26-22AWG Contacts
The is a hand Crimping Tool Assembly with a features of a tool frame with a stationary jaw and handle, a moving jaw, a moving handle and an adjustable ratchet that ensures full contact crimping. The tool frame holds a die assembly with two crimping sections, the die assembly features a wire anvil, an insulation anvil, a wire crimper and an insulation crimper attached to the outside of the frame is a locator assembly, which contains a locator, a spring retainer and a contact support. Die retaining pins and die retaining screws are used to position and secure the dies in the tool frame. A nut is used on the upper die retaining screw to hold the locator assembly in place.
- .
- 1 to 1.4mm Inside diameter of wire
- .
- 2.8 to 3.6mm Strip length
