Conn Unshrouded Header HDR 2POS Solder ST Thru-Hole
针座 通孔 2 位置 -
得捷:
CONN HEADER VERT 2POS
艾睿:

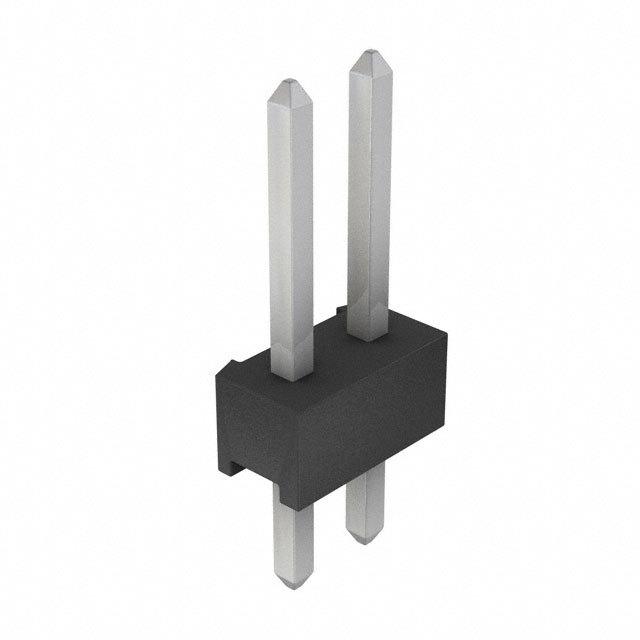

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this unshrouded 5-146254-1 header connector from TE Connectivity. This HDR connector&s;s 2 contacts that are made out of phosphor bronze and plated with matte tin over nickel. It has a header type gender. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. This connector has an operating temperature of -65 to 105 °C. 5-146254-1 is housed in black thermoplastic. It uses the solder termination method. This product is 2.13 mm long, 8.13 mm tall and 4.88 mm deep.
安富利:
Conn Unshrouded Header HDR 2 POS Solder ST Thru-Hole
Chip1Stop:
Conn Unshrouded Header HDR 2 POS Solder ST Thru-Hole
Verical:
Conn Unshrouded Header HDR 2 POS Solder ST Thru-Hole Carton
MASTER:
HEADER ASSEMBLY, MOD II, BREAKAWAY, DOUBLE ROW, HIGH TEMPERATURE
Powell:
.100 inch AMPMODU Headers
Electro Sonic:
02 MODII HDR DRST B/A .100CL
触点数 2
触点电镀 Tin, Tin over Nickel
额定电流 3 A
绝缘电阻 5000 MΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 2
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 30 VAC
额定电压 30 V
安装方式 Through Hole
长度 2.13 mm
宽度 4.88 mm
高度 8.13 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
材质 Thermoplastic
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
