5-794619-2

Conn Power HDR 22POS 3mm Solder RA Thru-Hole 22 Terminal 1Port

22P MICRO MNL ASSY,R/A,HDR LF

得捷:
CONN HEADER R/A 22POS 3MM

贸泽:
Pin & Socket Connectors 22P MICRO MNL ASSY R/A,HDR LF

艾睿:

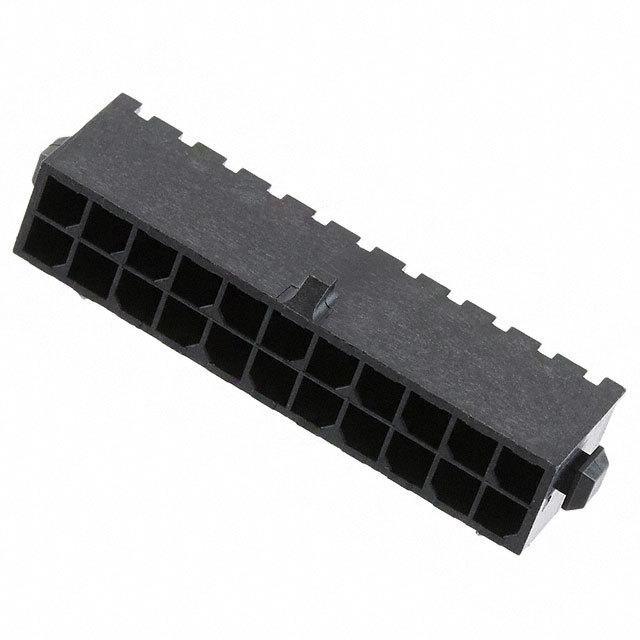

This 5-794619-2 power connector from TE Connectivity is ideal for powering up your circuit. This HDR connector&s;s 22 contacts that are made out of brass and plated with gold over nickel. This connector has a single port. Its pitch is 3 mm. It has a right angle body orientation. It has a header type gender. It has a maximum voltage rating of 250 VAC. 5-794619-2 is housed in nylon. This device has a maximum current rating of 5 A/contact. The item will be shipped in tray orientation. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. Its 22 terminals use the solder termination method. This product is 37 mm long, 8.67 mm tall and 11.92 mm deep.

安富利:
Conn Power HDR 22 POS 3mm Solder RA Thru-Hole 22 Terminal 1 Port

Chip1Stop:
Conn Power HDR 22 POS 3mm Solder RA Thru-Hole 22 Terminal 1 Port

Verical:
Conn Power HDR 22 POS 3mm Solder RA Thru-Hole 22 Terminal 1 Port Box/Tray

Powell:
3mm Centerline, 250V, 5 A max.
