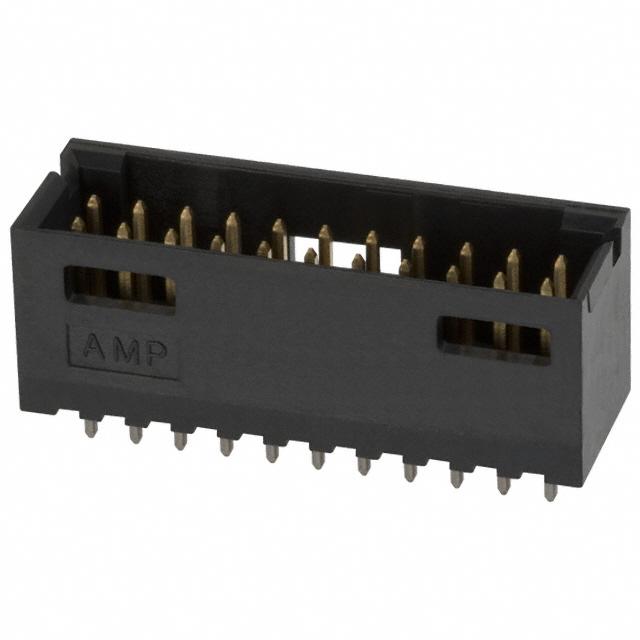

Conn Shrouded Header HDR 22POS 2.54mm Solder ST Thru-Hole Tray
22 MODII HDR DRST SHRD .100CL
Product Highlights
Header
Header Type = Shrouded
Number of Rows = Dual
Number of Positions = 22
Mating Post Length = 8.08 mm
得捷:
CONN HEADER VERT 22POS 2.54MM
Verical:
Conn Shrouded Header 4 Sides HDR 22 POS 2.54mm Solder ST Thru-Hole Tray
MASTER:
ASSEMBLY, HEADER, MOD II, .025 SQ POST, DBL ROW, .100 X .100 C/L WITH DETENTS
Powell:
.100 inch AMPMODU Headers
Online Components:
22 MODII HDR DRST SHRD .100CL
Electro Sonic:
22 MODII HDR DRST SHRD .100CL
触点数 22
触点电镀 Gold, Tin over Nickel
额定电流 3 A
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 22
安装角度 180 °
额定电流Max 3A/触头
安装方式 Through Hole
引脚间距 2.54 mm
长度 30.8 mm
宽度 11.2 mm
高度 11.17 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tray
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
