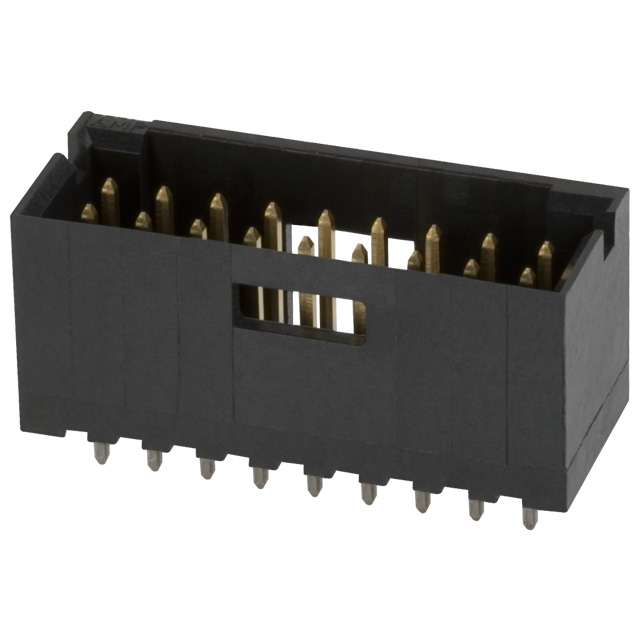

5-103168-7

集管和线壳 HDR 2X09P VRT T/H

Connector Header Through Hole 18 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 18POS 2.54MM

贸泽:
集管和线壳 HDR 2X09P VRT T/H

艾睿:
Thanks to TE Connectivity&s;s shrouded 5-103168-7 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 18 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a header type gender. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. The component will be shipped in tray format. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. 5-103168-7 is housed in black thermoplastic. This product is 25.7 mm long, 11.18 mm tall and 10.16 mm deep.

安富利:
Conn Shrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Shrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 18 POS 2.54mm Solder ST Top Entry Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  5-103168-7  18 MODII HDR DRST SHRD .100CL

MASTER:
HDR ASSY, MOD II, SHROUDED, 4 SIDES, DBL ROW, VERTICAL, .100X.100, WITH .025 SQ POSTS

Powell:
.100 inch AMPMODU Headers

Electro Sonic:
18 MODII HDR DRST SHRD .100CL
