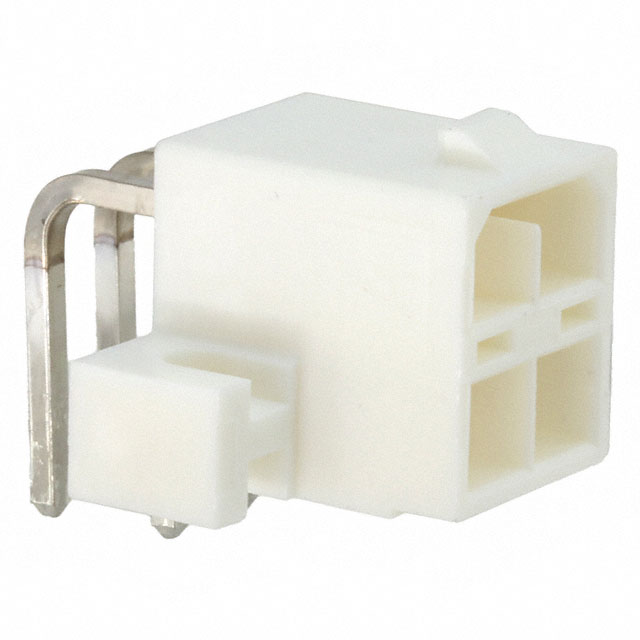

5794172-2

Conn Power HDR 4POS 4.2mm Solder RA Thru-Hole 4 Terminal 1Port

针座 通孔，直角 4 位置 0.165"（4.20mm）

得捷:
CONN HEADER R/A 4POS 4.2MM

艾睿:
Use the 5794172-2 power connector from TE Connectivity to power up your circuit with the least amount of losses. This HDR connector&s;s 4 contacts that are made out of brass and plated with gold over nickel. Its pitch is 4.2 mm. It has a maximum voltage rating of 600 VAC. It has a header type gender. This connector has a single port. It has a right angle body orientation. This device has a maximum current rating of 9 A/contact. 5794172-2 is housed in polybutylene terephthalate. Its 4 terminals use the solder termination method. This product is 19.6 mm long, 13.1 mm tall and 19.4 mm deep.

安富利:
Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port

Verical:
Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port Box

MASTER:
Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port Box

Powell:
4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action

Electro Sonic:
Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port Box
