5-104693-5

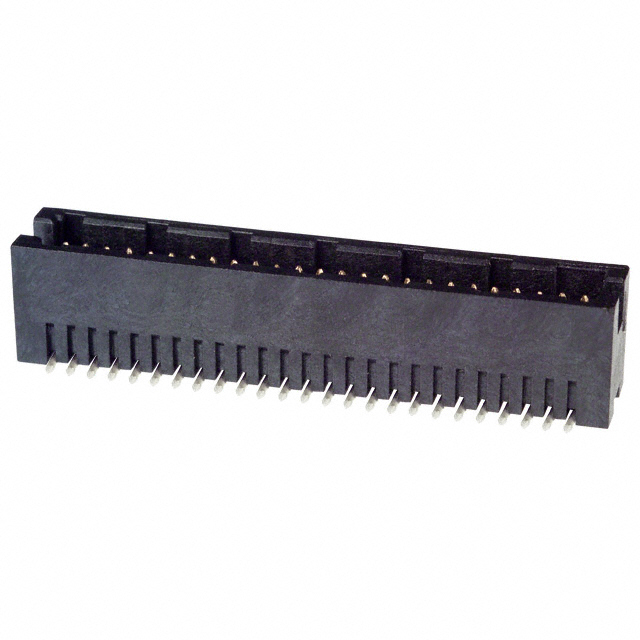

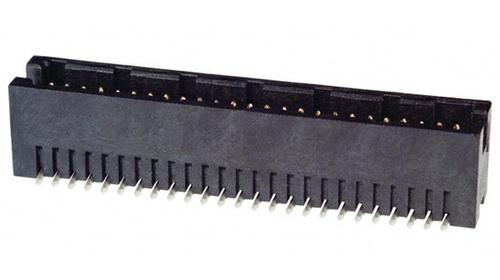

AMP - TE CONNECTIVITY 5-104693-5 Stacking Board Connector, BBD Series, 50Contacts, Header, 1.27mm, Surface Mount, 2Rows

50 50/50 HDR DRST SFMNT.390 SN

Product Highlights

Header

Number of Positions = 50

Terminate To Printed Circuit Board

Vertical Mount Angle

Yes PCB Retention Feature

得捷:
CONN HEADER SMD 50POS 1.27MM

贸泽:
Headers & Wire Housings 50 POS SMT HDR VERT DUAL ROW

艾睿:

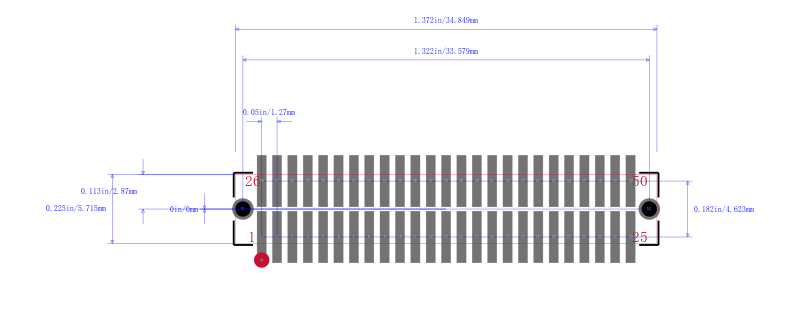

Think of TE Connectivity&s;s shrouded 5-104693-5 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over palladium nickel over nickel. It has a straight body orientation. Its pitch is 1.27 mm. This is a 2-row connector. It has a header type gender. It has a maximum voltage rating of 30 VAC. This device has a maximum current rating of 4 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 34.84 mm long, 9.41 mm tall and 7.23 mm deep. This connector has an operating temperature of -65 to 105 °C. 5-104693-5 is housed in black glass filled thermoplastic. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 50 POS 1.27mm Solder ST SMD Tube

Chip1Stop:
Conn Shrouded Header HDR 50 POS 1.27mm Solder ST SMD Tube

Verical:
Conn Shrouded Header HDR 50 POS 1.27mm Solder ST Top Entry SMD Box/Tube

Newark:
# AMP - TE CONNECTIVITY  5-104693-5  Stacking Board Connector, BBD Series, 50 Contacts, Header, 1.27 mm, Surface Mount, 2 Rows

MASTER:
HEADER ASSEMBLY, SURFACE MOUNT, AMPMODU 50/50 GRID 9.90 [.390] MATED HEIGHT

Powell:
.050 Inch AMPMODU 50/50 Grid

Online Components:
50 50/50 HDR DRST SFMNT.390 SN

Electro Sonic:
50 50/50 HDR DRST SFMNT.390 SN
