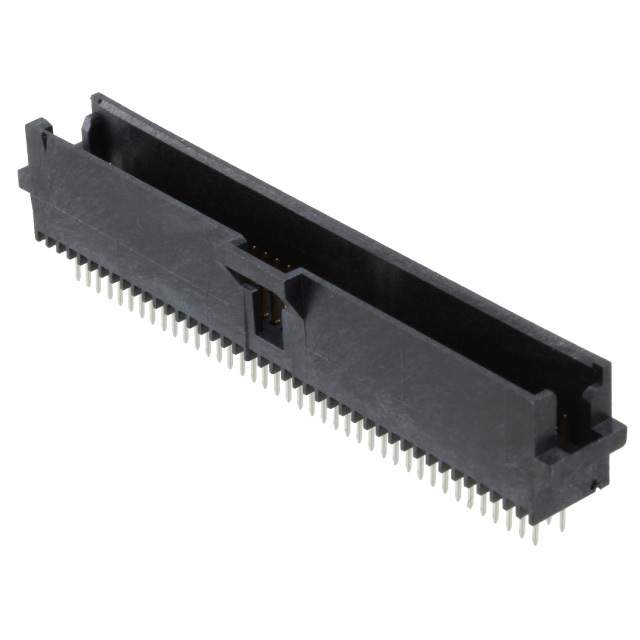

5-104666-5

板对板与夹层连接器 80SYSTEM 50 HDR DRST SHRD SN

Connector Header Through Hole 80 position 0.050" 1.27mm

得捷:
CONN HEADER VERT 80POS 1.27MM

贸泽:
板对板与夹层连接器 80SYSTEM 50 HDR DRST SHRD SN

艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this shrouded 5-104666-5 header connector from TE Connectivity on your PCB today! This HDR connector&s;s 80 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 30 VAC. It has a straight body orientation. This is a 2-row connector. It has a header type gender. Its pitch is 1.27 mm. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 5-104666-5 is housed in black thermoplastic. It uses the solder termination method. This product is 57 mm long, 9.91 mm tall and 8.74 mm deep. This connector has an operating temperature of -65 to 105 °C.

安富利:
Conn Shrouded Header HDR 80 POS 1.27mm Solder ST Thru-Hole Tube

Powell:
.050 X .100 AMPMODU System 50
