516-038-000-302概述

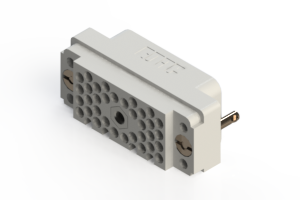

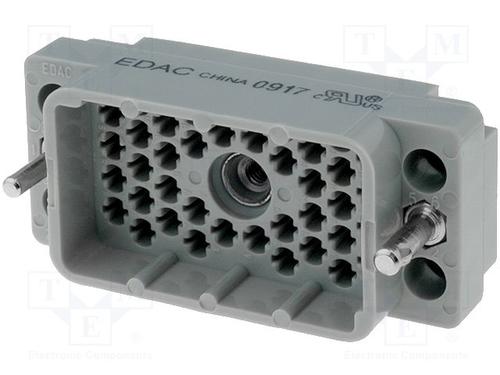

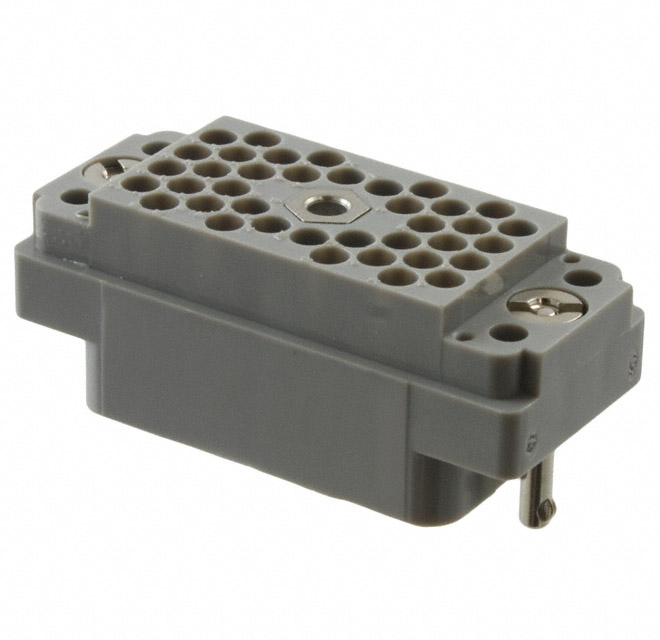

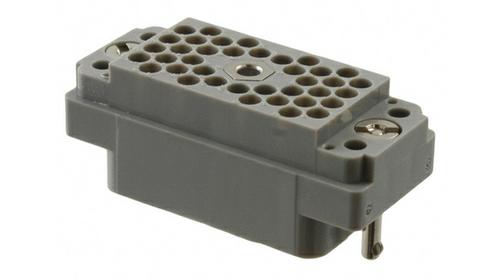

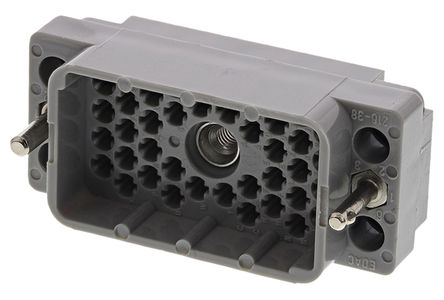

EDAC  516-038-000-302  连接器外壳, 灰色, 紧缩螺母 & 偏光硬件, 516系列, 插头, 38 路, 3.81 mm, 516 Series Pin Contacts

38 位置 无极性触头外壳 灰色 因触头而异 支架和面板


欧时:
EDAC 516 系列 38 路 公 直向 RJ45-Rangierfeld 516-038-000-302, 镀金触点, 8.5A额定电流


得捷:
CONN HSG RACK & PANEL 38POS GRY


e络盟:
连接器外壳, 灰色, 紧缩螺母 & 偏光硬件, 516系列, 插头, 38 路, 3.81 mm, 516系列 公触芯


TME:
Connector: rectangular; Series:516; -65÷125°C; Mat: polycarbonate


Verical:
Conn Rack and Panel PL 38 POS Crimp ST Panel Mount


Newark:
# EDAC  516-038-000-302  Connector Housing, Grey, Locknut & Polarizing Hardware, 516 Series, Plug, 38 Positions, 3.81 mm


MASTER:
516 Series Rack & Panel Connector with 38 empty contact slots in a Plug style connector. The insulator is Grey PC withno cover and a locknut and polarizing hardware.


Online Components:
Conn Rack and Panel PL 38 POS Crimp ST Panel Mount


Electro Sonic:
516 Series Rack & Panel Connector with 38 empty contact slots in a Plug style connector. The insulator is Grey ...


516-038-000-302中文资料参数规格
技术参数

触点数 38

极性 Male

触点电镀 Gold

额定电流 8.5 A

排数 9

针脚数 38

额定电流Max 8.5 A

工作温度Max 105 ℃

工作温度Min -65 ℃

封装参数

安装方式 Panel

引脚数 38

引脚间距 3.81 mm

外形尺寸

长度 50.8 mm

宽度 22.25 mm

高度 22.2 mm

引脚间距 3.81 mm

物理参数

外壳颜色 Gray

颜色 Gray

触点材质 Phosphor Copper

绝缘材质 Polycarbonate

工作温度 -65℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Industrial, 工业

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册
