593-0400

DELTRON COMPONENTS  593-0400  连接器, DIN音频/视频, 锁定, 插座, 4 触点, 面板安装, 金属主体, 镀银触芯, 593系列

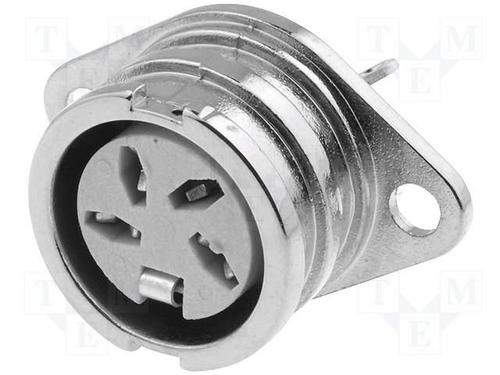

The 593 series professional Locking Sockets designed for panel-mounting via two flange fixing screws. These sockets mate with all standard DIN plugs, but are specifically designed for the ring lock plug range 592 series, with a quick and simple quarter-turn of the locking ring to secure the plug in place. Can be coloured coded via an inter-changeable plastic ring.

.

103MR at 100VDC Minimum insulation resistance

.

10mR Maximum contact resistance

.

500Vrms Test voltage
