5041873270

Conn Wire to Board HDR 32POS 1.25mm Solder ST SMD Embossed T/R

Connector Header Surface Mount 32 position 0.049" 1.25mm

得捷:
CONN HEADER SMD 32POS 1.25MM

艾睿:

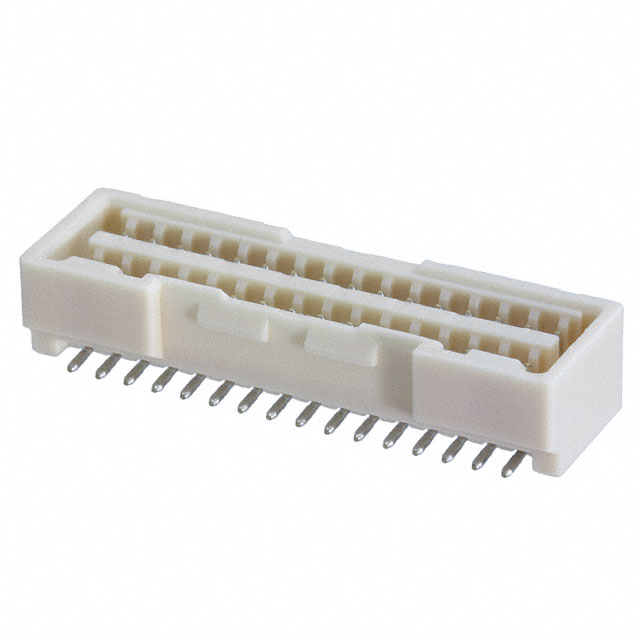

As an added safety precaution, the shrouded 5041873270 header connector from Molex will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 32 contacts that are made out of brass and plated with tin over nickel. Its pitch is 1.25 mm. It has a maximum voltage rating of 50 V. It has a header type gender. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 1.5 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It uses the solder termination method. 5041873270 is housed in beige glass filled polyamide. This connector has an operating temperature of -25 to 85 °C. This product is 22.9 mm long, 4.8 mm tall and 7 mm deep.

安富利:
Conn Wire to Board HDR 32 POS 1.25mm Solder ST SMD Embossed T/R

Verical:
Conn Shrouded Header 4 Sides HDR 32 POS 1.25mm Solder ST SMD Micro-Lock™ T/R

儒卓力:
**32 MICRO LOCK RIGHANGLE 1,25MM **
