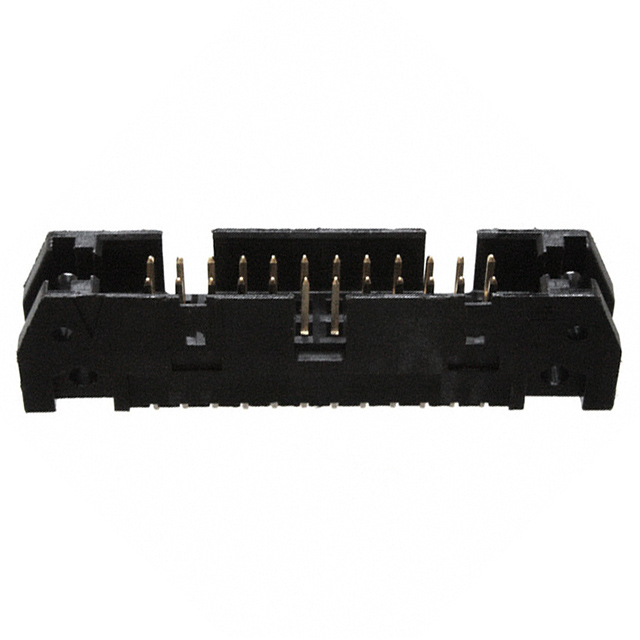

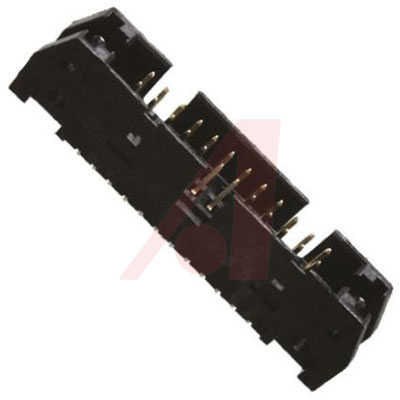

5102154-5

AMP FROM TE CONNECTIVITY  5102154-5  线至板连接器, 针座, 24路, 2.54MM

针座 通孔 24 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 24POS 2.54MM

e络盟:
线至板连接器, 针座, 24路, 2.54MM

艾睿:

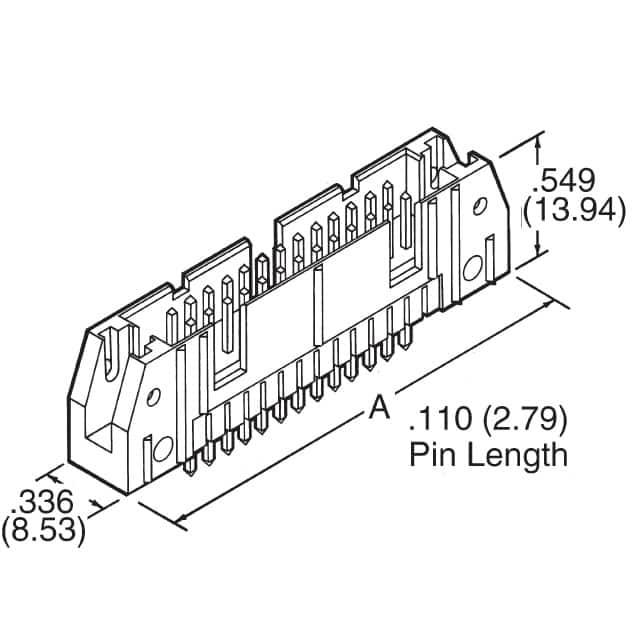

Make strong and binding connections on your circuit boards by adopting this ejector 5102154-5 connector from TE Connectivity. This HDR connector&s;s 24 contacts that are made out of phosphor bronze|brass and plated with gold over palladium nickel|gold over nickel. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. It uses the solder termination method. 5102154-5 is housed in black nylon|polyester. This connector has an operating temperature of -65 to 105 °C. This product is 49.78 mm long, 13.94 mm tall and 8.53 mm deep.

Allied Electronics:
024 UNIV HDR SP 4S 30DP STD

安富利:
Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Tray

Verical:
Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  5102154-5  Wire-To-Board Connector, 2.54 mm, 24 Contacts, Header, AMP-LATCH Series, Through Hole, 2 Rows

MASTER:
HEADER ASSY, UNIVERSAL, AMP-LATCH

Powell:
Pin and Pinless Headers AMP-LATCH

Electro Sonic:
A/L UNIV HDR 24P VERT
