5-794677-4

管脚和插座连接器 24POS MICRO MNL ASSY R/A,THRU

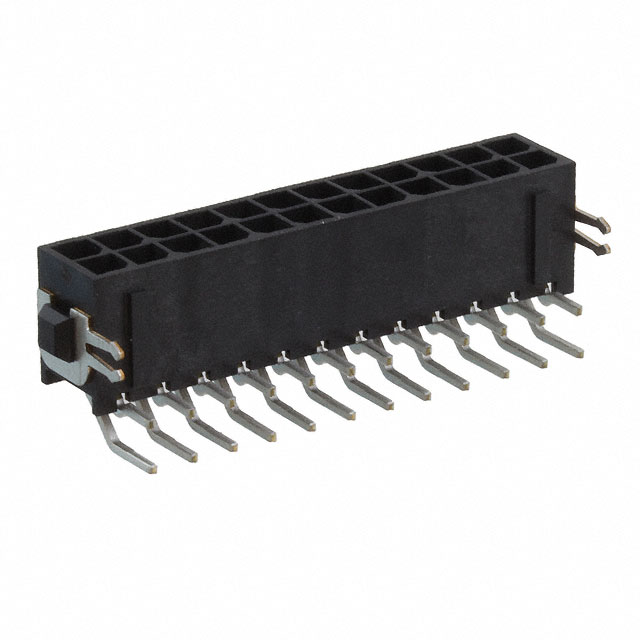

24 Position Dual Row Right Angle Through Hole Mate N Lok Header

得捷:
CONN HEADER R/A 24POS 3MM

贸泽:
管脚和插座连接器 24POS MICRO MNL ASSY R/A,THRU

艾睿:
Do you need to connect a power supply to a circuit? Then this 5-794677-4 power connector from TE Connectivity is perfect for you! This HDR connector&s;s 24 contacts that are made out of brass and plated with matte tin over nickel. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. It has a header type gender. This connector has a single port. Its pitch is 3 mm. This device has a maximum current rating of 5 A/contact. 5-794677-4 is housed in nylon. Its 24 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 40 mm long, 8.67 mm tall and 11.92 mm deep.

安富利:
Conn Power HDR 24 POS 3mm Solder RA Thru-Hole 24 Terminal 1 Port

Powell:
3mm Centerline, 250V, 5 A max.
