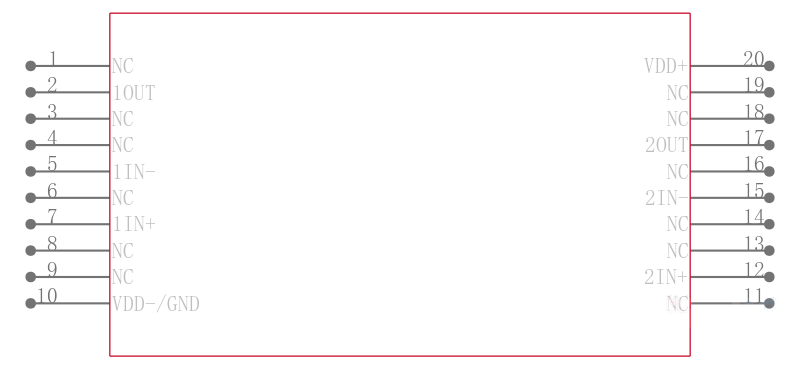

轨到轨毫微功耗高级 LinCMOS™ 双路运算放大器 20-LCCC -55 to 125
description
The TLC2252 and TLC2254 are dual and quadruple operational amplifiers from Texas Instruments. Both devices exhibit rail-to-rail output performance for increased dynamic range in single- or split-supply applications. The TLC225x family consumes only 35 µA of supply current per channel. This micropower operation makes them good choices for battery-powered applications. The noise performance has been
dramatically improved over previous generations of CMOS amplifiers. Looking at Figure 1, the TLC225x has a noise level of 19 nV/√Hzat 1kHz; four times lower than competitive micropower solutions.
Output Swing Includes Both Supply Rails
Low Noise. . . 19 nV/√HzTyp at f = 1 kHz
Low Input Bias Current...1 pA Typ
Fully Specified for Both Single-Supply and Split-Supply Operation
Very Low Power...35 µA Per Channel Typ
Common-Mode Input Voltage Range Includes Negative Rail
Low Input Offset Voltage 850 µV Max at TA= 25°C TLC225xA
Macromodel Included
Performance Upgrades for the TS27L2/L4 and TLC27L2/L4
Available in Q–Temp Automotive
HighRel Automotive Applications
Configuration Control / Print Support
Qualification to Automotive Standards
