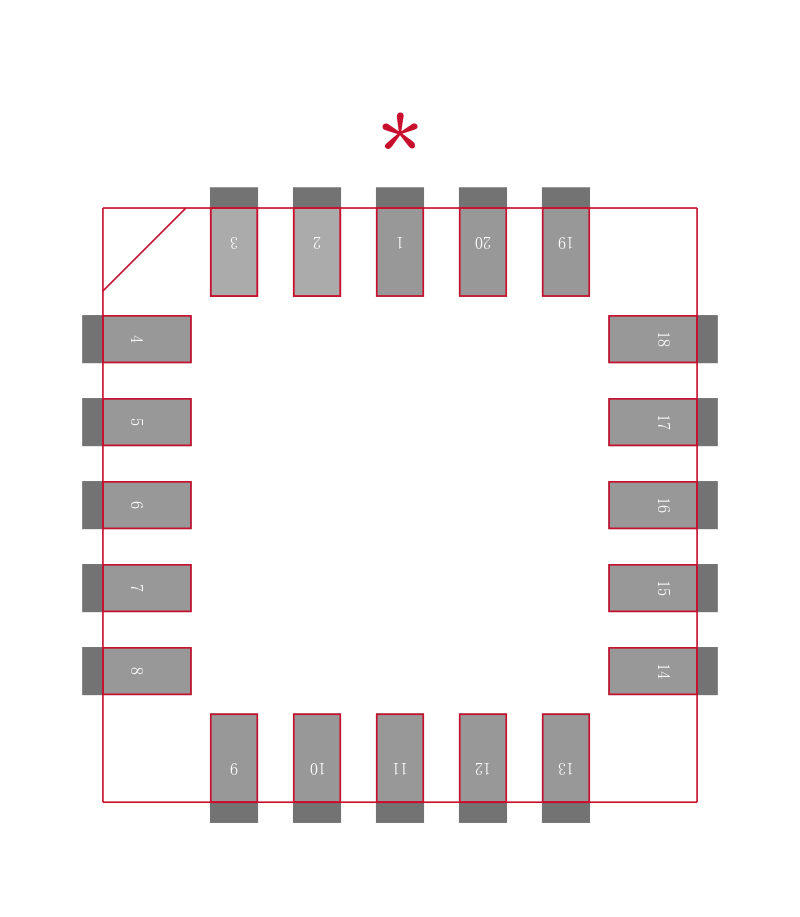

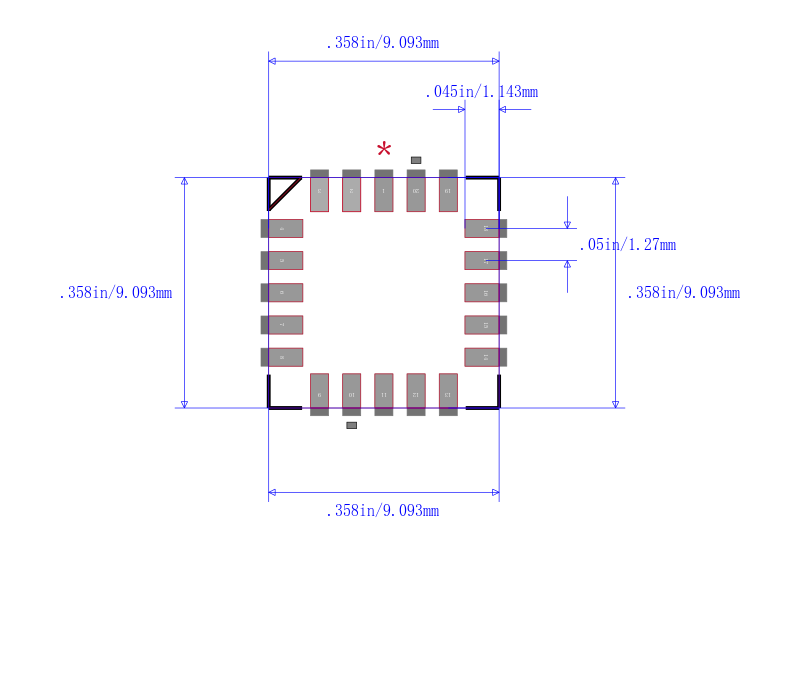

双精密运算放大器 DUAL PRECISION OPERATIONAL AMPLIFIERS
Description
The LT1013x devices are dual precision operational amplifiers, featuring high gain, low supply current, low noise, and low-offset-voltage temperature coefficient.
The LT1013x devices can be operated from a single 5-V power supply; the common-mode input voltage range includes ground, and the output can also swing to within a few millivolts of ground. Crossover distortion is eliminated. The LT1013x can be operated with both dual ± 15-V and single 5-V supplies.
The LT1013C and LT1013D are characterized for operation from 0°C to 70°C. The LT1013DI is characterized for operation from −40°C to 105°C. The LT1013M, LT1013AM, and LT1013DM are characterized for operation over the full military temperature range of −55°C to 125°C.
Features
• Single-Supply Operation
– Input Voltage Range Extends to Ground
– Output Swings to Ground While Sinking Current
• Phase Reversal Protection
• Input Offset Voltage
– 150 µV Maximum at 25°C for LT1013AM
• Offset-Voltage Temperature Coefficient
– 2 µV/°C Maximum for LT1013AM
• Input Offset Current
– 0.8 nA Maximum at 25°C for LT1013AM
• High Gain
– 1.5 V/µV Minimum RL = 2 kΩ for LT1013AM
– 0.8 V/µV Minimum RL = 600 kΩ for LT1013AM
• Low Supply Current
– 0.5 mA Maximum at TA = 25°C for LT1013AM
• Low Peak-to-Peak Noise Voltage
– 0.55 µV Typical
• Low Current Noise
– 0.07 pA/√Hz Typical
• For Die Only Option, See LT1013-DIE
Applications
• Thermocouple Amplifiers
• Low-Side Current Measurement
• Instrumentation Amplifiers
