5018762040

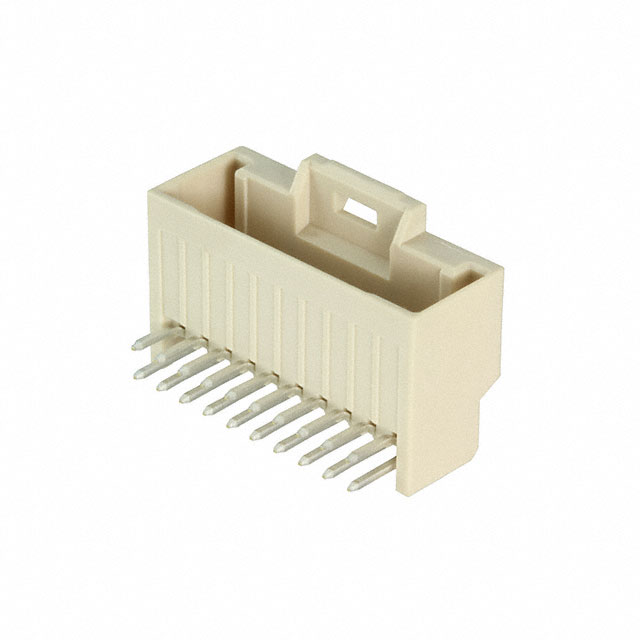

2.00毫米（ .079 “ ）间距iGrid游戏线对板头，双排，直角， 20电路 2.00mm .079" Pitch iGrid Wire-to-Board Header, Dual Row, Right Angle, 20 Circuits

Connector Header Through Hole, Right Angle 20 position 0.079" 2.00mm

得捷:
CONN HEADER R/A 20POS 2MM

立创商城:
2mm 2x10P

艾睿:
This shrouded 5018762040 header connector from Molex is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 20 contacts that are made out of brass and plated with tin over nickel. This is a 2-row connector. It has a header type gender. Its pitch is 2 mm. It has a maximum voltage rating of 250 VDC|250VAC. It has a right angle body orientation. This device has a maximum current rating of 2 A/contact. The component will be shipped in tray format. 5018762040 is housed in natural nylon. This product is 22 mm long, 8.3 mm tall and 14.5 mm deep. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method.
