5018761240

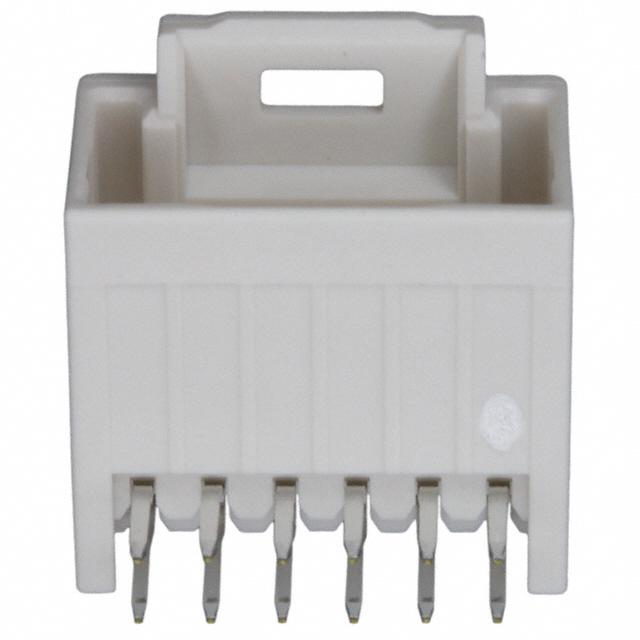

2.00毫米（ .079 “ ）间距iGrid游戏线对板头，双排，直角， 12电路 2.00mm .079" Pitch iGrid Wire-to-Board Header, Dual Row, Right Angle, 12 Circuits

Connector Header Through Hole, Right Angle 12 position 0.079" 2.00mm

得捷:
CONN HEADER R/A 12POS 2MM

立创商城:
2mm 2x6P 弯插

艾睿:
Use this shrouded 5018761240 header connector from Molex where IDC ribbon cables are used. This HDR connector&s;s 12 contacts that are made out of brass and plated with tin over nickel. It has a header type gender. It has a maximum voltage rating of 250 VDC|250VAC. This is a 2-row connector. Its pitch is 2 mm. It has a right angle body orientation. This device has a maximum current rating of 2 A/contact. The component will be shipped in tray format. It uses the solder termination method. 5018761240 is housed in natural nylon 6/6. This connector has an operating temperature of -40 to 105 °C. This product is 14 mm long, 8.3 mm tall and 14.5 mm deep.

安富利:
Conn Shrouded Header HDR 12 POS 2mm Solder RA Thru-Hole Tray

Verical:
Conn Shrouded Header 4 Sides HDR 12 POS 2mm Solder RA Thru-Hole iGrid™ Tray
