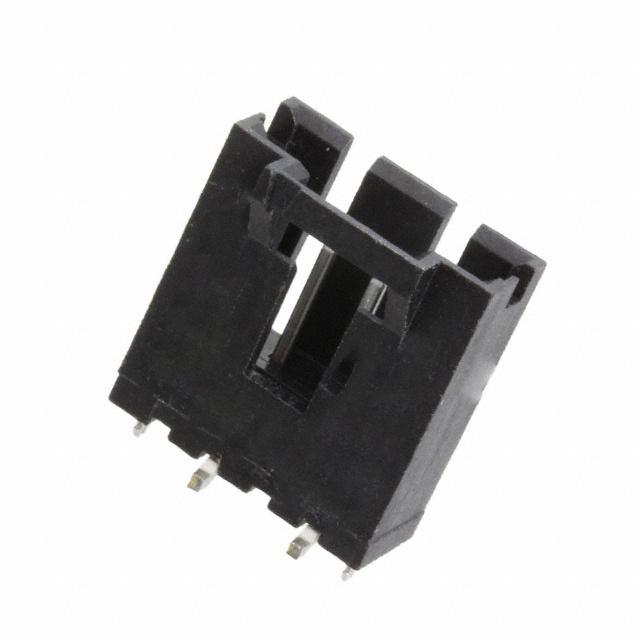

Conn Shrouded Header HDR 4POS 2.54mm Solder ST SMD T/R
针座 表面贴装型 4 位置 0.100"(2.54mm)
得捷:
CONN HEADER SMD 4POS 2.54MM
艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s shrouded 5-1375549-3 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 4 contacts that are made out of brass and plated with tin over nickel. It has a header type gender. This is a 1-row connector. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It uses the solder termination method. This product is 14.21 mm tall. 5-1375549-3 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C.
安富利:
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST SMD T/R
Verical:
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST SMD T/R
MASTER:
AMPMODU MTE SURFACE MOUNT, VERTICAL HEADER ASSEMBLY
Powell:
.100 AMPMODU Headers, Housings & Contacts
Electro Sonic:
04 MTE VERT SMT HDR FULL LF-PB
触点数 4
极性 Male
触点电镀 Tin
额定电流 3 A
绝缘电阻 5000 MΩ
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 4
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 250 VAC
接触电阻Max 15 mΩ
安装方式 Surface Mount
引脚数 4
高度 14.21 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车,通用,医疗,电信
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
