5016451820

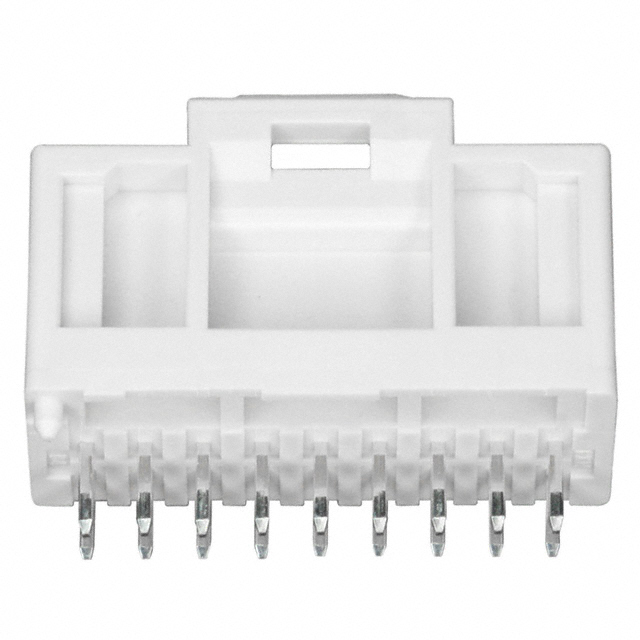

2.00毫米（ .079 “ ）间距iGrid游戏线对板头，双排，垂直，与PCB定位器 2.00mm .079" Pitch iGrid Wire-to-Board Header, Dual Row, Vertical, with PCB Locator

Connector Header Through Hole 18 position 0.079" 2.00mm

得捷:
CONN HEADER VERT 18POS 2MM

欧时:
2.0 W/B DualGridPlugHsgAssy18Ckt

立创商城:
2mm 2x9P 直插

艾睿:
Easily mount this shrouded 5016451820 header connector from Molex onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 18 contacts that are made out of brass and plated with tin over copper. It has a header type gender. Its pitch is 2 mm. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 250 VDC|250VAC. This device has a maximum current rating of 2 A/contact. The component will be shipped in tray format. It uses the solder termination method. This connector has an operating temperature of -25 to 85 °C. This product is 20 mm long, 12 mm tall and 8.2 mm deep. 5016451820 is housed in natural nylon 6/6.

安富利:
Conn Shrouded Header HDR 18 POS 2mm Solder ST Thru-Hole Tray
