5-146309-5

2.54mm 方针

针座 通孔，直角 10 位置 0.100"（2.54mm）

立创商城:
2.54mm 方针

得捷:
CONN HEADER R/A 10POS 2.54MM

艾睿:

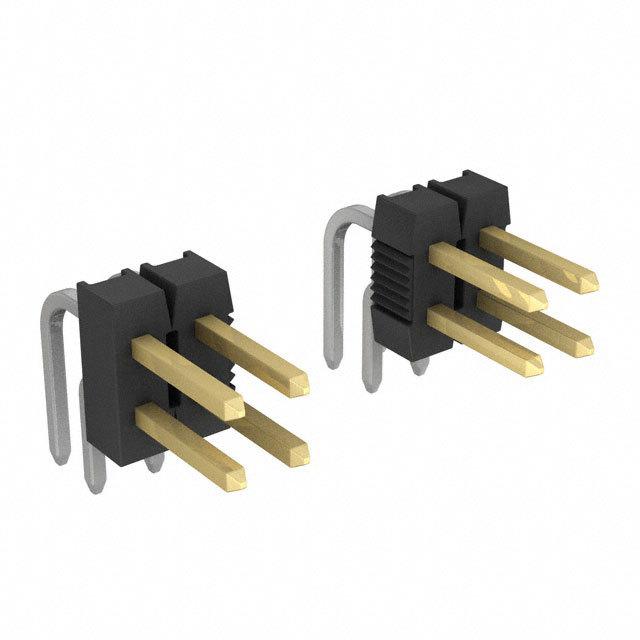

This unshrouded 5-146309-5 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. Its pitch is 2.54 mm. This is a 2-row connector. It has a header type gender. This device has a maximum current rating of 3 A/contact. The item will be shipped in tray orientation. This connector has an operating temperature of -65 to 105 °C. 5-146309-5 is housed in black thermoplastic. It uses the solder termination method. This product is 12.29 mm long, 6.05 mm tall and 14.37 mm deep.

安富利:
Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole

Chip1Stop:
Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Automotive Tray

Verical:
Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Side Entry Thru-Hole Automotive Tray

Newark:
# AMP - TE CONNECTIVITY  5-146309-5  10 MODII HDR DRRA B/A .100CL New

MASTER:
HEADER ASSEMBLY, MOD II, BREAKAWAY, HIGH TEMPERATURE,RIGHT ANGLE, DOUBLE ROW, .100 X.100 C/L, W/.025 SQUARE POSTS

Powell:
.100 inch AMPMODU Headers

Electro Sonic:
10 MODII HDR DRRA B/A .100CL
