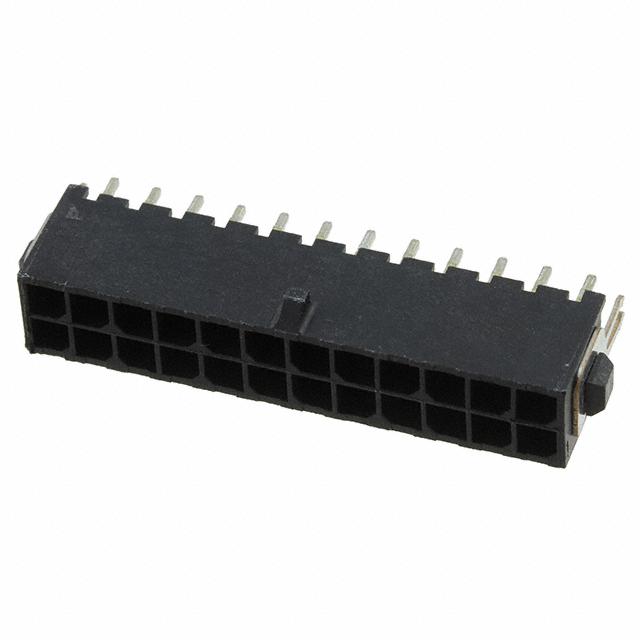

5-794682-4

Conn Wire to Board HDR 24POS 3mm Solder ST Thru-Hole Tray

24P MICRO MNL ASSY,VRT,THRU,L

得捷:
CONN HEADER VERT 24POS 3MM

艾睿:
Mount this wire to board 5-794682-4 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 24 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. It has a header type gender. This is a 2-row connector. Its pitch is 3 mm. It has a straight body orientation. This device has a maximum current rating of 5 A/contact. The item will be shipped in tray orientation. 5-794682-4 is housed in black nylon. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. This product is 40 mm long, 9.24 mm tall and 8.67 mm deep.

Verical:
Wire to Board Connector HDR 24 POS 3mm Solder ST Thru-Hole Box/Tray

MASTER:
VERTICAL HEADER ASSEMBLY, THRU HOLE, 30 GOLD, DUAL ROW, MICRO MATE-N-LOK

Powell:
3mm Centerline, 250V, 5 A max.

Electro Sonic:
24P MICRO MNL ASSY,VRT,THRU,L
