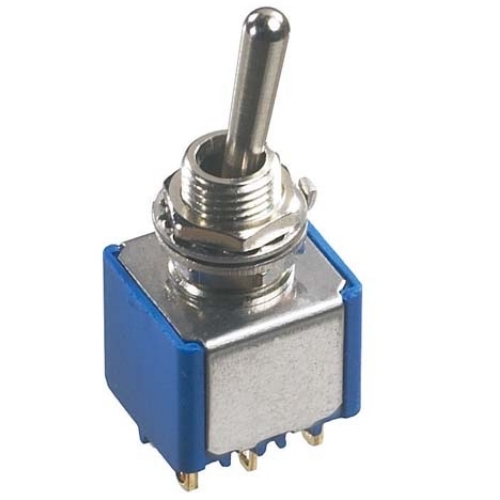

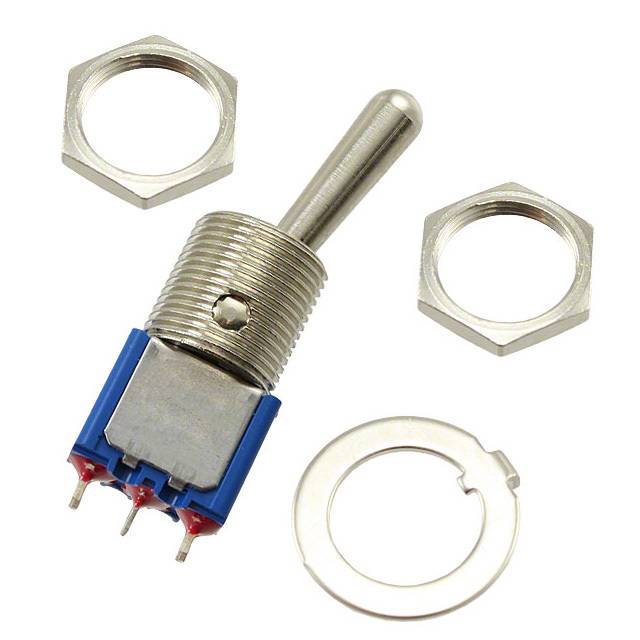

APEM 5636MAB 拨动开关, 5000系列, 不发光, SPDT, 开-开, 面板, 4 A

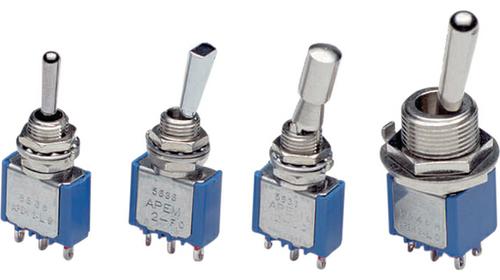

The 5000 series Miniature Toggle Switch available in wide range models and amp options. It is available in 1, 2, 3 and 4-pole configurations. It has solder lug and PC terminals, gold plated or silver contacts, 17 actuators including toggles, paddle levers and locking levers in different lengths. It is available in 12-terminal types including 9 for PC board mounting. Other types include quick-connect and wire-wrap.
触点类型 SPDT
额定电流Max 6 A
工作温度Max 85 ℃
工作温度Min -40 ℃
接触电阻Max 10 mΩ
安装方式 Through Hole
长度 13.2 mm
高度 44.1 mm
触点材质 Silver
工作温度 -40℃ ~ 85℃
产品生命周期 50000 Cycles
包装方式 Bulk
制造应用 Industrial, 音频, Commercial, 通信与网络, Communications & Networking, 工业, Audio, 商业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
