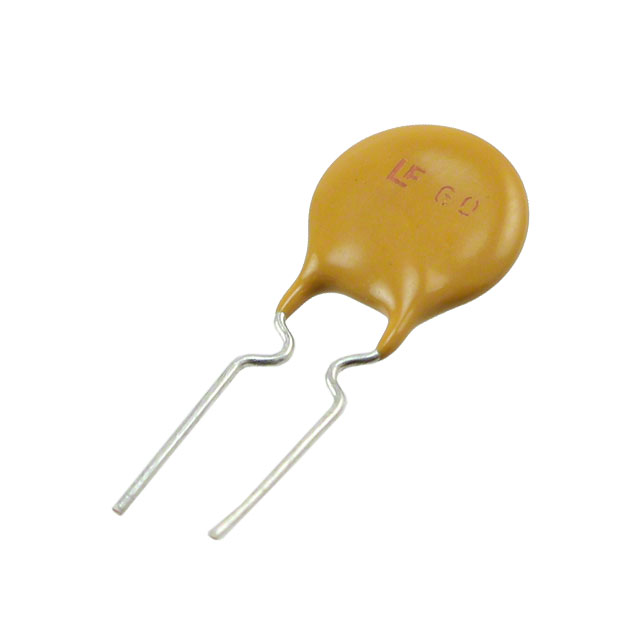

LITTELFUSE 60R075XU 自复式保险丝, PTC, 径向引线, 0.75A
聚合物 PTC 自恢复保险丝 60V 750 mA Ih 通孔 径向,圆片式
立创商城:
60V 0.75A 自恢复保险丝
得捷:
PTC RESET FUSE 60V 750MA RADIAL
e络盟:
自复式保险丝PTC, 通孔, POLYFUSE 60R系列, 750 mA, 1.5 A, 60 VDC, -40 °C
艾睿:
In the event of overcurrent or short, your circuit can resume normal operation with this 60R075XU positive temperature coefficient device from Littelfuse, without the need to replace any fuses. This device has a maximum current rating of 40. This part has a lead diameter of 0.51 mm. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product&s;s terminal pitch is 5.1typ mm. This product is 3.1Max mm deep.
Chip1Stop:
PTC Resettable Fuse 0.75Ahold 1.5Atrip 60VDC 40A 0.92W 6.3s 0.25Ohm Radial 10.2 X 3.1mm Bulk Automotive
Verical:
PTC Resettable Fuse 0.75Ahold 1.5Atrip 60VDC 40A 0.92W 6.3s 0.25Ohm Radial 10.2 X 3.1mm Bulk Automotive
Newark:
# LITTELFUSE 60R075XU POLYFUSE, PTC, RADIAL, 0.75A
儒卓力:
**0.75A resettable PTCs 60V **
额定电压DC 60.0 V
工作电压 60 V
跳闸时间 6.3 s
额定电流 750 mA
耗散功率 0.92 W
电阻 0.6 Ω
保持电流 750 mA
跳闸电流 1.5 A
额定电流Max 40 A
保持电流Max 750 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 60 VDC
额定电压 60 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 15 mm
宽度 3.1 mm
高度 3.1 mm
封装 Radial, Disc
厚度 3.05 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
