6720005422概述

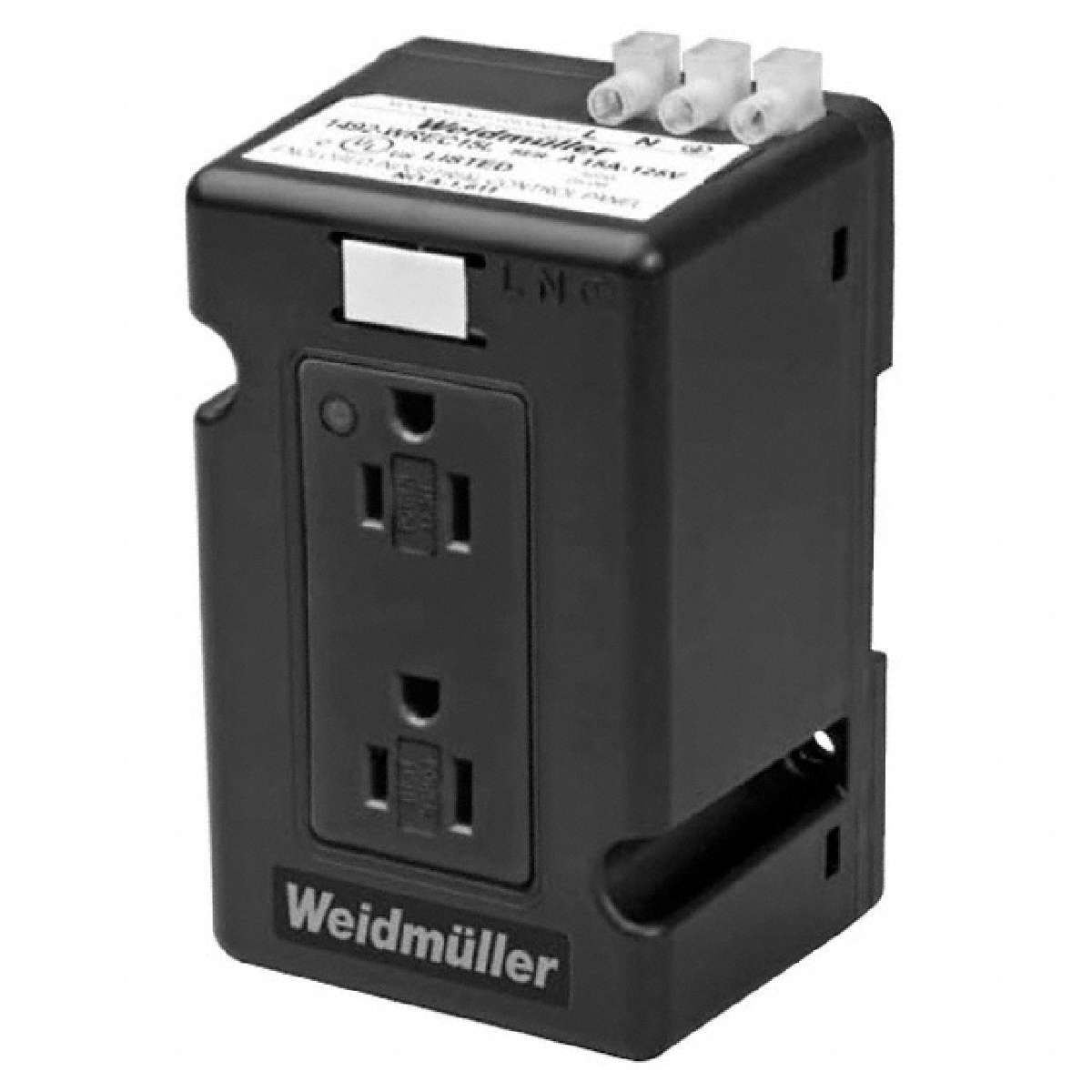

WEIDMULLER  6720005422  交流电源连接器, 母, 15A 125V

The is a DIN Rail Receptacle 15A rated power outlet that provide a convenient power source for portable computers or test devices for the in-the panel troubleshooting. PBT enclosure cover and polyamide 6/6 enclosure base with UL94V-0 rating. The DRAC GF 15 DIN rail receptacle comes with stainless steel spring.


得捷:
MODULE OUTLET AC GFI 15A 120VAC


安富利:
Conn Power RCP 6 POS Screw Panel Mount 6 Terminal 1 Port


Verical:
Conn Power RCP 6 POS Screw Panel Mount 6 Terminal 1 Port


Newark:
Power Entry Connector, Industrial Electrical AC Power, 15 A, Black, 125 V


MASTER:
Conn Power RCP 6 POS Screw Panel Mount 6 Terminal 1 Port


Electro Sonic:
Conn Power RCP 6 POS Screw Panel Mount 6 Terminal 1 Port


6720005422中文资料参数规格
技术参数

触点数 6

极性 Female

额定电压AC 125 V

额定电流 15 A

额定电流Max 15 A

工作温度Max 60 ℃

工作温度Min -25 ℃

额定电压Max 125 VAC

输入电压 120 V

封装参数

安装方式 DIN Rail

外形尺寸

高度 123.6 mm

物理参数

工作温度 -25℃ ~ 60℃

其他

产品生命周期 Active

制造应用 Power Management

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买6720005422
型号: 6720005422
描述:WEIDMULLER  6720005422  交流电源连接器, 母, 15A 125V
