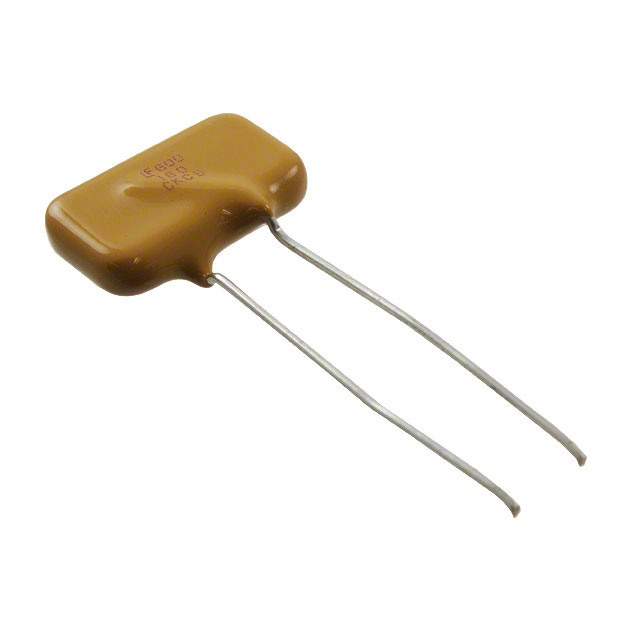

PTC Resettable Fuse 0.16Ahold 0.32Atrip 60VDC/600VAC 3A 1W 10s 4Ω Radial 16 X 6 X 12.6mm Ammo
Do you need a more convenient and quicker way for your protected equipment to be restored into operation after a fuse burns out? Then this PTC resettable fuse from is perfect for you! This device has a maximum current rating of 3. This part has a lead diameter of 0.65 mm. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product"s terminal pitch is 5.1typ mm. This product is 16Max mm long, 12.6Max mm tall and 6Max mm deep.
跳闸时间 10 s
耗散功率 1 W
电阻 18 Ω
保持电流 0.16 A
跳闸电流 320 mA
额定电流Max 3 A
保持电流Max 160 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 12.6 mm
宽度 16 mm
高度 12.6 mm
封装 Radial, Disc
厚度 6 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
600R160UR Littelfuse 力特 | 当前型号 | 当前型号 |
HVR600P160CFF 力特 | 功能相似 | 600R160UR和HVR600P160CFF的区别 |
