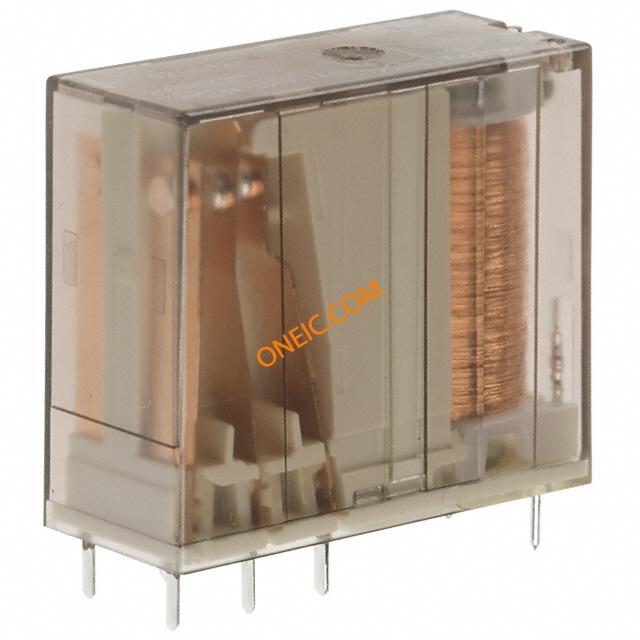

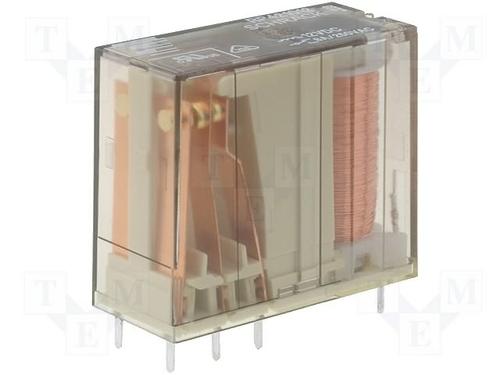

Power Relay 12VDC 14A DPDT 29mm 12.6mm 25.5mm THT
The RPII/2 series PCB General Purpose Power Relay with 2-pole 8A, 2-form-C CO or 2-form-A NO contacts.
- .
- Twin contacts available
- .
- 4kV/8mm Coil-contact
艾睿:
Electromechanical Relay 12VDC 270Ohm 14A DPDT 29x12.6x25.5mm THT Power Relay
TME:
Relay: electromagnetic; DPDT; Ucoil:12VDC; 8A/250VAC; 8A/24VDC
Verical:
Electromechanical Relay 12VDC 270Ohm 14A DPDT 29x12.6x25.5mm THT Power Relay
MASTER:
Electromechanical Relay 12VDC 270Ohm 14A DPDT 29x12.6x25.5mm THT Power Relay
Powell:
Reinforced PCB Relays up to 16A
Electro Sonic:
Electromechanical Relay 12VDC 270Ohm 14A DPDT 29x12.6x25.5mm THT Power Relay
额定电压AC 400 V
触点类型 DPDT
触点额定电流 14 A
线圈电压 12 VDC
线圈电流 44.4 mA
线圈电阻 270 Ω
额定电流Max 14 A
线圈电压DC 12 V
线圈功率 500 mW
额定功率Max 2 KVA
开关电流Max 14 A
工作温度Max 70 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 8
长度 29 mm
高度 25.5 mm
触点材质 Silver Nickel
重量 18 g
工作温度 -40℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tube
制造应用 Industrial, Consumer Electronics, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536410050
