6825 OR001

6825 OR001图片1
6825 OR001图片2
6825 OR001图片3
6825 OR001图片4
6825 OR001图片5
6825 OR001图片6
6825 OR001图片7
6825 OR001图片8
6825 OR001图片9
6825 OR001图片10
6825 OR001概述

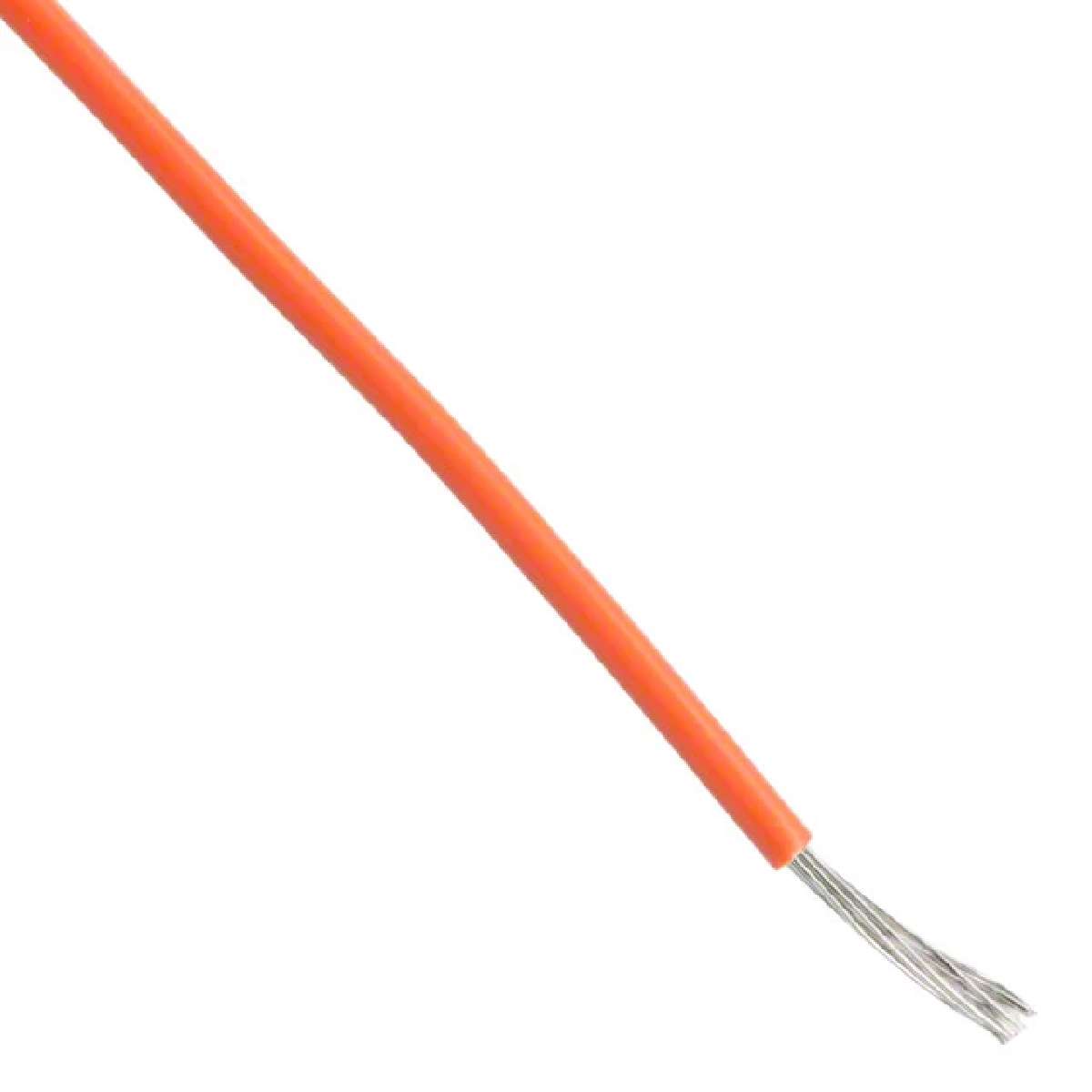

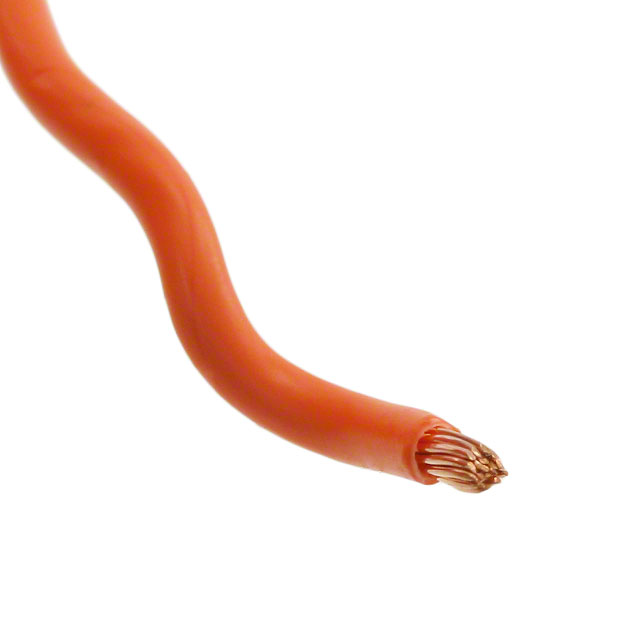

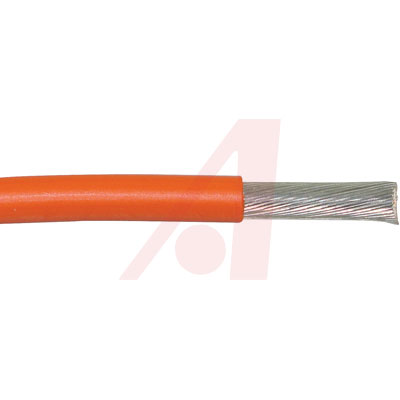

ALPHA WIRE 6825 OR001 Wire, Hook Up, EcoGen™ EcoWire® Plus, MPPE, Orange, 18AWG, 0.81mm², 19 x 0.23mm, 1000Ft

’s new EcoWire Plus offers all of the environmental benefits and abrasion-resistance characteristics of standard EcoWire, plus the additional fluid resistance for demanding factory applications. EcoWire Plus derives its advantage from its unique insulation, a modified polyphenylene ether mPPE thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment WEEE requirements.

6825 OR001中文资料参数规格
技术参数

线规 18 AWG

额定电压DC 300 V

额定电压 300 V

外形尺寸

长度 304.8 m

物理参数

颜色 Orange

工作温度 -40℃ ~ 110℃

导体材质 Copper

其他

产品生命周期 Active

包装方式 Coil

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买6825 OR001
型号: 6825 OR001
制造商: Alpha Wire
描述:ALPHA WIRE 6825 OR001 Wire, Hook Up, EcoGen™ EcoWire® Plus, MPPE, Orange, 18AWG, 0.81mm², 19 x 0.23mm, 1000Ft
