6828 BK001概述

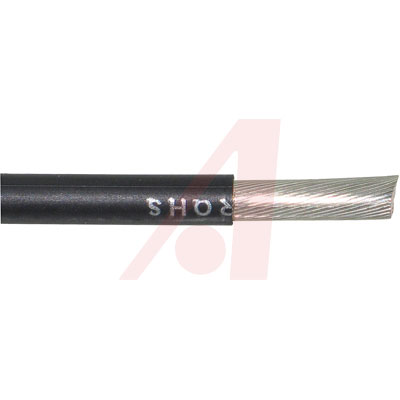

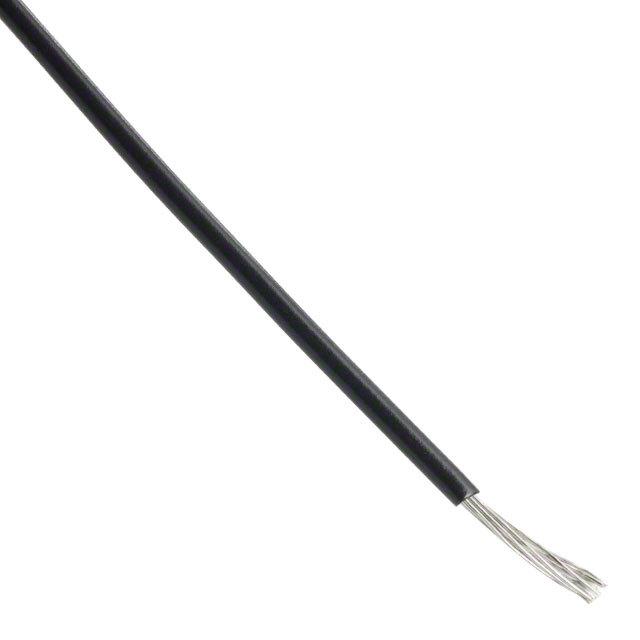

ALPHA WIRE  6828 BK001  线缆, 黑色, 15 AWG, 1.53 mm², 19 x 28AWG, 1000 ft, 304.8 m

’s new EcoWire Plus offers all of the environmental benefits and abrasion-resistance characteristics of standard EcoWire, plus the additional fluid resistance for demanding factory applications. EcoWire Plus derives its advantage from its unique insulation, a modified polyphenylene ether mPPE thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment WEEE requirements.

6828 BK001中文资料参数规格
技术参数

线规 15 AWG

额定电压DC 300 V

额定电压 300 V

外形尺寸

长度 304.8 m

物理参数

外壳颜色 Black

颜色 Black

工作温度 -40℃ ~ 110℃

导体材质 Copper

其他

产品生命周期 Active

包装方式 Coil

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买6828 BK001
型号: 6828 BK001
制造商: Alpha Wire
描述:ALPHA WIRE  6828 BK001  线缆, 黑色, 15 AWG, 1.53 mm², 19 x 28AWG, 1000 ft, 304.8 m
