6830 WH001概述

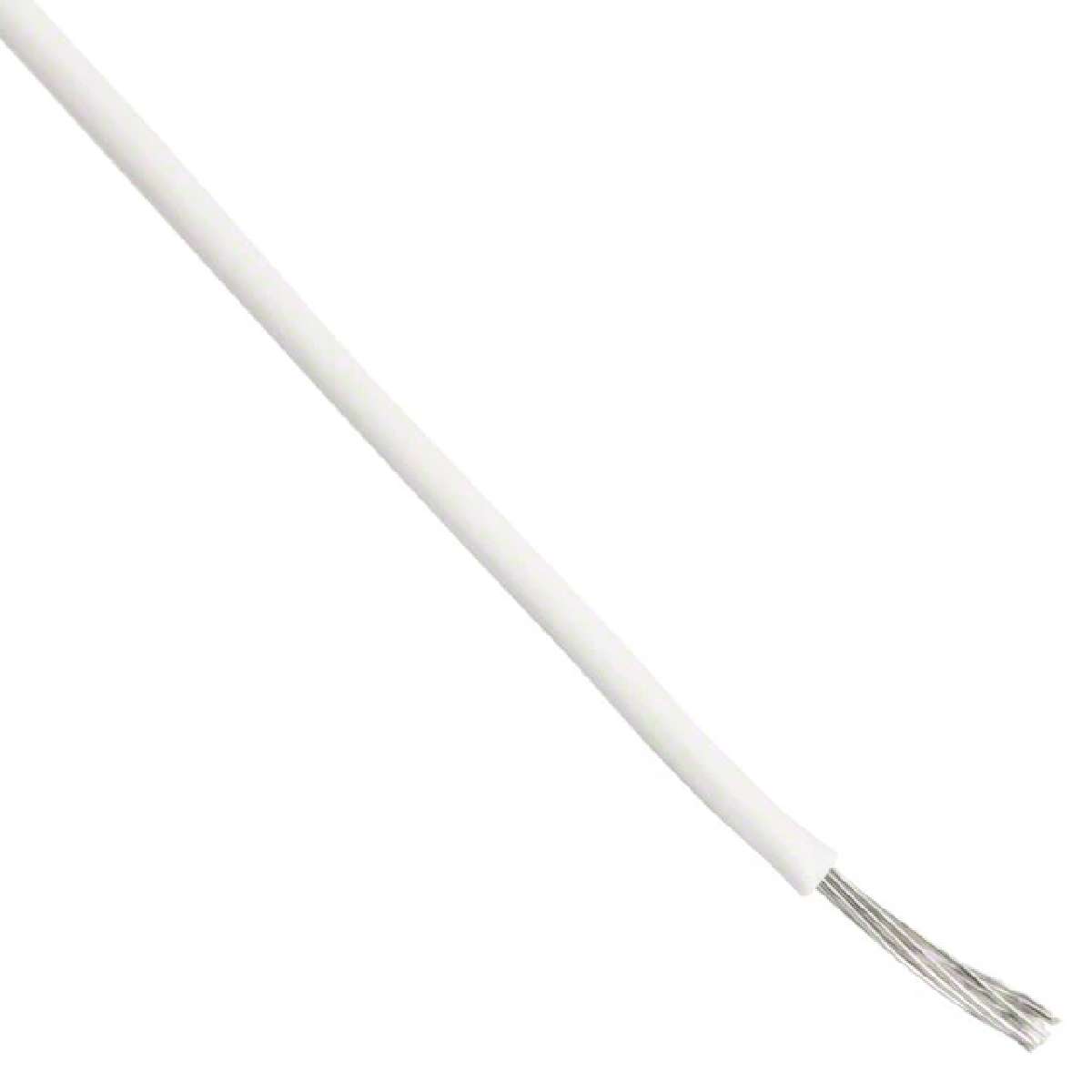

ALPHA WIRE 6830 WH001 Wire, Hook Up, EcoGen™ EcoWire® Plus, MPPE, White, 12AWG, 3.08mm², 19 x 25AWG, 1000Ft

’s new EcoWire Plus offers all of the environmental benefits and abrasion-resistance characteristics of standard EcoWire, plus the additional fluid resistance for demanding factory applications. EcoWire Plus derives its advantage from its unique insulation, a modified polyphenylene ether mPPE thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment WEEE requirements.

6830 WH001中文资料参数规格
技术参数

线规 12 AWG

额定电压DC 300 V

额定电压 300 V

外形尺寸

长度 304.8 m

物理参数

颜色 White

工作温度 -40℃ ~ 110℃

导体材质 Copper

其他

产品生命周期 Active

包装方式 Coil

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买6830 WH001
型号: 6830 WH001
制造商: Alpha Wire
描述:ALPHA WIRE 6830 WH001 Wire, Hook Up, EcoGen™ EcoWire® Plus, MPPE, White, 12AWG, 3.08mm², 19 x 25AWG, 1000Ft
