62NT1-7概述

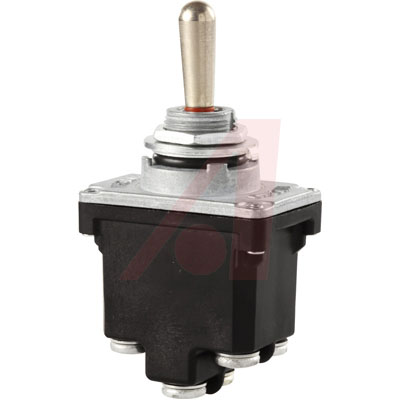

拨动开关 DPDT 3 Position Screw Standard Lever

"s NT Series toggle switches simplify installation and enhance panel appearance while providing a broad range of options for circuitry, sealing, size and style. These rugged, cost-effective switches were originally designed to eliminate the need for behind-panel hardware, to provide uniform panel height, and to provide a unique, universal cover seal, all while providing reliable performance.

NT Series toggle switches from Honeywell feature:

* A raised panel stand-off option for consistent panel height

* An Easy-Start bushing to ensure proper alignment

* A panel-to-cover O-ring seal for increased protection

* Quality at a competitive price

62NT1-7中文资料参数规格
技术参数

额定电流 15.0 A

排数 2

触点类型 DPDT

额定电流Max 18 A

额定功率Max 745.7 VA

封装参数

安装方式 Screw Terminals

外形尺寸

高度 63.75 mm

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509065

数据手册

在线购买62NT1-7
型号: 62NT1-7
描述:拨动开关 DPDT 3 Position Screw Standard Lever
