Cable, Multipair; 5; 28AWG; 7/36; Aluminum/Polyester; 0.24in.; 0.035in.

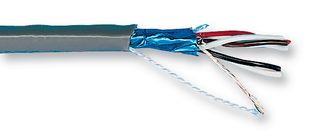

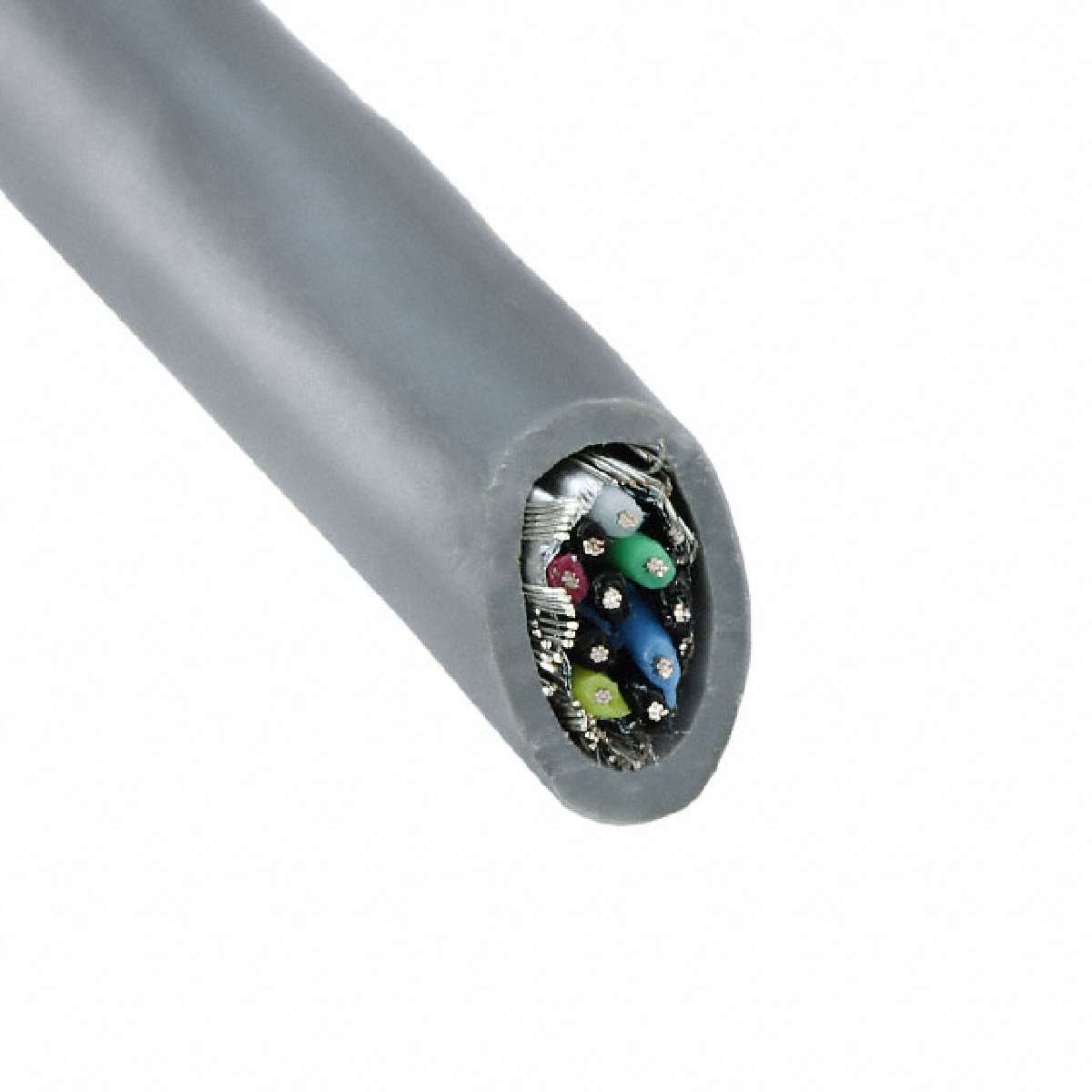

The is a 100ft 5-pair overall foil-braid shield Communication and Control Cable with stranded tinned copper conductors with polyethylene insulation. It has aluminium/polyester foil shield with 25% minimum overlap and foil facing out-ward stranded tinned copper drain wire, 90% coverage of tinned copper braid.
- .
- 20.4lb Maximum pull tension
- .
- 100R Characteristic impedance
- .
- -20 to 75°C Temperature range
线规 28 AWG
额定电压DC 300 V
屏蔽 Yes
芯数 10
工作温度Max 60 ℃
工作温度Min -20 ℃
额定电压Max 300 V
额定电压 300 V
长度 30.5 m
颜色 Slate
工作温度 -20℃ ~ 75℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Audio, Communications & Networking, Computers & Computer Peripherals, , Computers & Computer Peripherals, Automation & Process Control, Industrial, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
