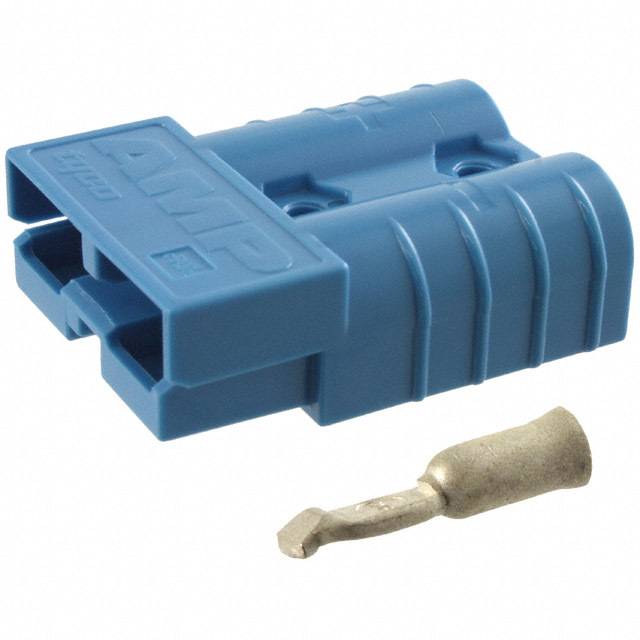

AMP FROM TE CONNECTIVITY 647893-5. 连接器套件, SRS50, 蓝色, 10-12AWG
位置 无公型或母型之分 压接 - 自由悬挂
得捷:
CONN PLUG 2POS IN-LINE CRIMP
立创商城:
647893-5
贸泽:
Heavy Duty Power Connectors SERIES 50 CONN 10-12 AWG BLUE
e络盟:
连接器套件, SRS50, 蓝色, 10-12AWG
艾睿:
Use this threaded kit 647893-5 connector accessory from TE Connectivity on high-reliability applications that definitely need an extra layer of protection to perform at their optimal level. This part has an operating temperature of -20 to 105 °C.
Chip1Stop:
Connector Accessories Kit And Spring Subassembly
Verical:
Connector Accessories Kit Polycarbonate Blue Silver Bag
Newark:
# AMP - TE CONNECTIVITY 647893-5 Rectangular Power Connector, Power 50 Series, Crimp, Hermaphroditic, 2 Contacts, Pin, Socket
MASTER:
CONNECTOR KIT, AMP POWER SERIES 50, 10-12 AWG
Powell:
Power Connectors
Online Components:
SRS 50 CONN KIT,BLUE,10-12AWG
Electro Sonic:
SRS 50 CONN KIT,BLUE,10-12AWG
触点数 2
线规 10AWG ~ 12AWG
触点电镀 Silver
额定电压DC 48.0 V
额定电流 50 A
排数 1
易燃性等级 UL 94 V-0
针脚数 2
工作温度Max 105 ℃
工作温度Min -20 ℃
额定电压 600 V
封装 -
长度 48.23 mm
宽度 35.05 mm
高度 15.88 mm
封装 -
外壳颜色 Blue
颜色 Blue
触点材质 Copper
工作温度 -20℃ ~ 105℃
外壳材质 Polycarbonate
产品生命周期 Active
包装方式 Bag
制造应用 Power Management, Industrial, Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536698000
