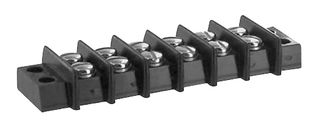

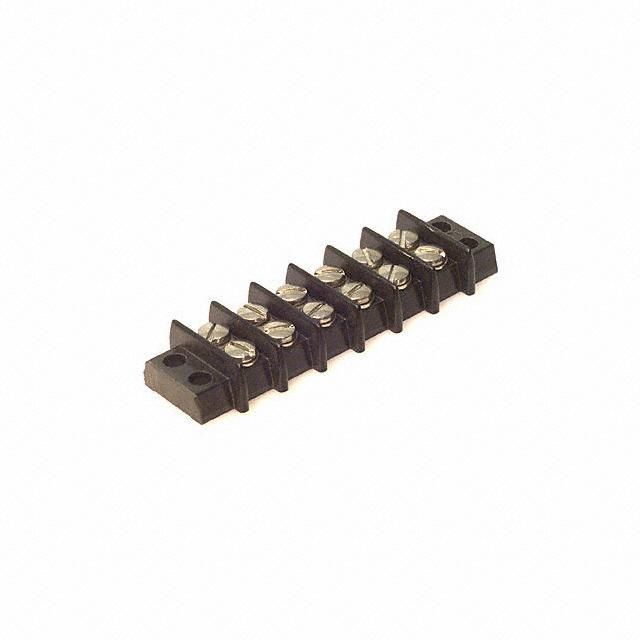

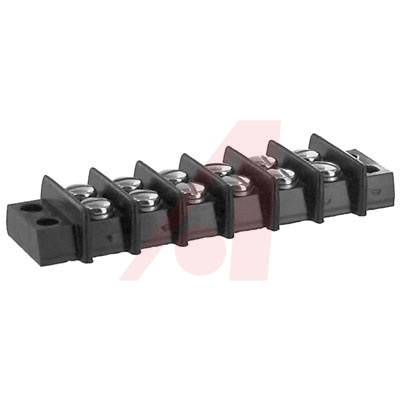

CINCH 6-140 面板安装阻隔接线端子, 6 路, 2排, 250 V, 15 A, 16 AWG
The is a 6-way 2-row open bottom Barrier Terminal Block with standard screw and 16AWG maximum wire size. This 140 series terminal block has black general purpose phenolic moulded monoblock insulation, nickel-plated brass eyelet, nickel over copper flash steel screw, electro-tin-plated brass solder terminal and NEMA grade XPC marker strip. Interposing barriers between terminals yield higher electrical ratings and provide additional protection against frayed wire shorting.
- .
- UL94V-1 and UL94V-0 Flammability rating
- .
- -55 to +300°F Operating temperature range
触点数 6
线规 16 AWG
触点电镀 Nickel
额定电流 15 A
排数 2
电路数 6
易燃性等级 UL 94 V-1
针脚数 6
安装角度 180 °
额定电流Max 15 A
工作温度Max 148 ℃
工作温度Min -48 ℃
额定电压Max 250 VAC
额定电压 250 V
安装方式 Panel
引脚间距 9.50 mm
长度 66.68 mm
宽度 73.8 mm
高度 28.58 mm
引脚间距 9.50 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -48℃ ~ 148℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 商业, Commercial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8536694050
