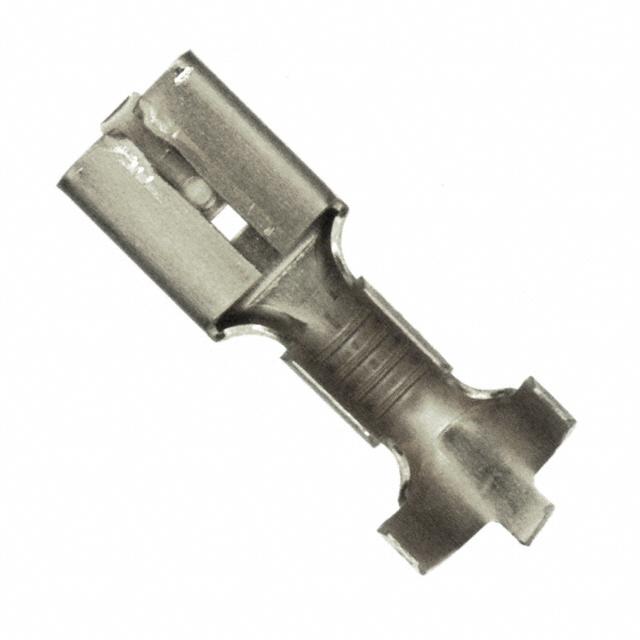

62016-1概述

62016-1(发货100个一截)

0.187"(4.75mm) 快速连接 母头 14-18 AWG 压接 非绝缘


得捷:
CONN QC RCPT 14-18AWG 0.187


立创商城:
快接端子 (发货100个一截)


贸泽:
Terminals 187 FAST RCPT 18-14 Reel of 12000


艾睿:
Make a proper connection between two terminal blocks using this quick disconnect terminal 62016-1 wire terminal from TE Connectivity. It has a receptacle type gender. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. Its wire is 14-18 AWG. This product is 16.25 mm long and 5.71 mm.


安富利:
Quick Disconnect Terminal 14-18AWG RCP 16.25mm 5.71mm Strip


Chip1Stop:
Quick Disconnect Terminal 14-18AWG RCP 16.25mm 5.71mm Strip


Verical:
Quick Disconnect Terminal 14-18AWG Brass RCP 16.25mm T/R


MASTER:
RECEPTACLE, FASTON, .187 SERIES


Powell:
FASTON Uninsulated Receptacles & Housings


Electro Sonic:
FASTON .187 RECEPTACLE 18-14 AWG BR


62016-1中文资料参数规格
技术参数

极性 Female

线规 14AWG ~ 18AWG

方向 Straight

封装参数

封装 -

外形尺寸

长度 16.26 mm

宽度 5.71 mm

封装 -

物理参数

触点材质 Brass

材质 Brass

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买62016-1
型号: 62016-1
描述:62016-1(发货100个一截)
