63147-1

63147-1图片1
63147-1图片2
63147-1图片3
63147-1图片4
63147-1图片5
63147-1图片6
63147-1图片7
63147-1图片8
63147-1图片9
63147-1图片10
63147-1图片11
63147-1概述

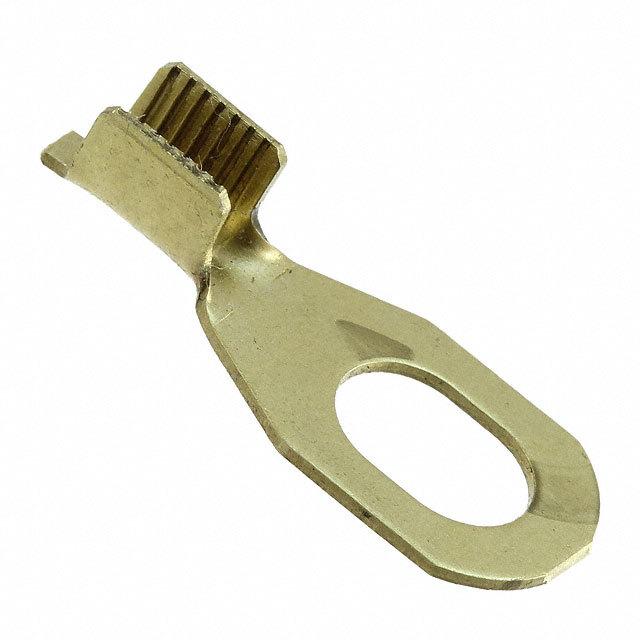

端子, 环形舌, 13.5AWG, 非绝缘

Ring Terminal Connector 8 Stud Flat Sided 13.5-17 AWG Crimp


得捷:
CONN RING FLAT 13.5-17AWG #8


e络盟:
端子, 环形舌, 13.5AWG, 非绝缘


艾睿:
The ring tongue terminal 63147-1 wire terminal from TE Connectivity is the best way to connect to your circuit&s;s terminal blocks. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. Its wire is 13.5-17 AWG. This product is 17.58 mm long and 7.87 mm.


安富利:
Ring Tongue Terminal 13.5-17AWG 17.58mm 7.87mm Strip


Verical:
Ring Tongue Terminal 13.5-17AWG Brass 17.58mm T/R


Powell:
Ring and Spade Tongue Terminals


Electro Sonic:
AMVAR RING 13 1/2-17 020BR


63147-1中文资料参数规格
技术参数

线规 13.5AWG ~ 17AWG

方向 Straight

端接类型 Ring Lug, Ring

外形尺寸

长度 17.58 mm

宽度 7.87 mm

厚度 0.51 mm

物理参数

触点材质 Brass

材质 Brass

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

数据手册

在线购买63147-1
型号: 63147-1
描述:端子, 环形舌, 13.5AWG, 非绝缘
