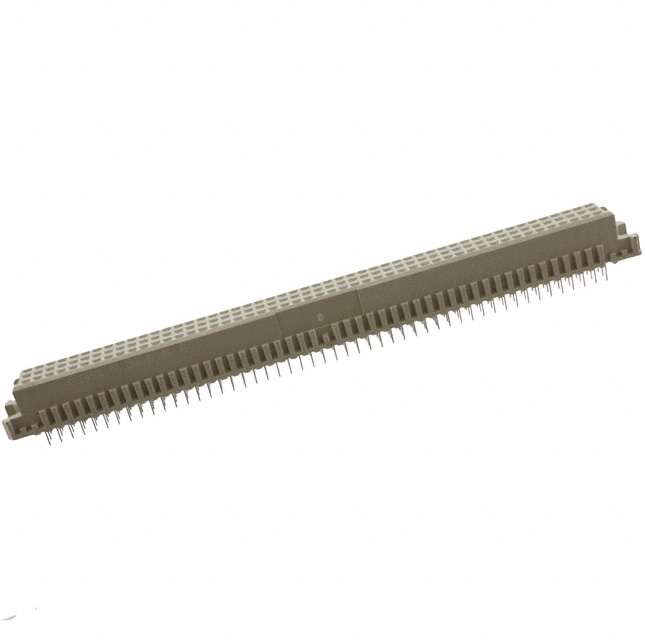

650406-5

DIN 41612 连接器 EUROCARD RECPT 150P 600

150 针位 DIN 插座，母型插口 镀金 通孔

得捷:
CONN DIN RCPT 150POS PCB GOLD

立创商城:
650406-5

贸泽:
DIN 41612 连接器 EUROCARD RECPT 150P 600

艾睿:
When small scale devices and operations need to interface with each other, use this din 41612 650406-5 backplane connector from TE Connectivity. This RCP connector&s;s 150 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 3-row connector. Its pitch is 2.54 mm. It has a receptacle type gender. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 1.5 A/contact. It uses the solder termination method. This product is 139.7 mm long, 11.51 mm tall and 10.6 mm deep. 650406-5 is housed in gray polyester. This backplane connector has an operating temperature of -55 to 125 °C.

Chip1Stop:
Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn DIN 41612 RCP 150 POS 2.54mm Solder ST Thru-Hole Box

Powell:
Eurocard Type C

Electro Sonic:
150 EURO TYPE C RECEPT ST ASSY
