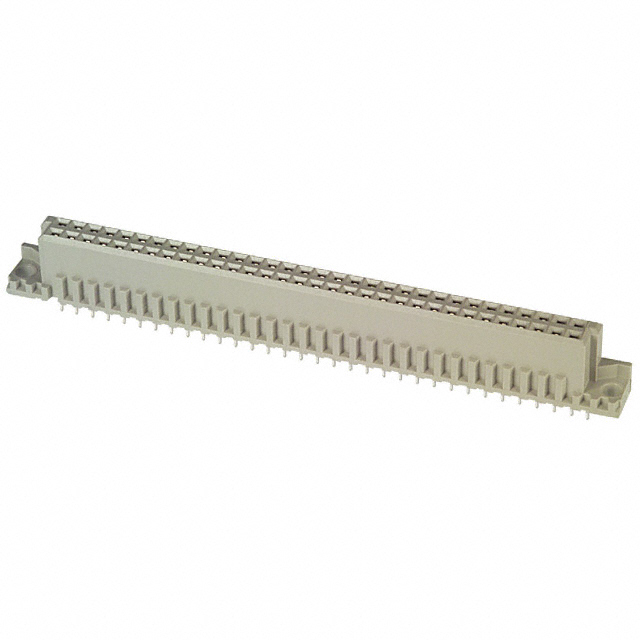

650861-5

2.54 mm 64 位置 插座 垂直 通孔 欧洲卡 B 型 连接器

064 EURO TYPE B RECEPT ST ASSY

Product Highlights

Mating Type = Receptacle

Number of Positions = 64

PCB Mount Angle = Vertical

Post Type = Solder Post

Not Make First / Break Last

立创商城:
650861-5

得捷:
CONN DIN RCPT 64POS PCB GOLD

贸泽:
DIN 41612 连接器 064 EURO TYPE B RECE

艾睿:
TE Connectivity&s;s din 41612 650861-5 backplane connector will transfer signals at a faster rate than other connector types. This RCP connector&s;s 64 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VDC|250VAC. It has a receptacle type gender. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 1.5 A/contact. This component will be shipped in tray format. It uses the solder termination method. This product is 94 mm long, 11.5 mm tall and 8.06 mm deep. This backplane connector has an operating temperature of -55 to 125 °C. 650861-5 is housed in gray polyester.

安富利:
Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn DIN 41612 RCP 64 POS 2.54mm Solder ST Thru-Hole Box/Tray

Newark:
# AMP - TE CONNECTIVITY  650861-5  064 EURO TYPE B RECEPT ST ASSY New

MASTER:
RECEPTACLE ASSEMBLY, EUROCARD, TYPE ""B""

Powell:
Eurocard Type B

Electro Sonic:
064 EURO TYPE B RECEPT ST ASSY
