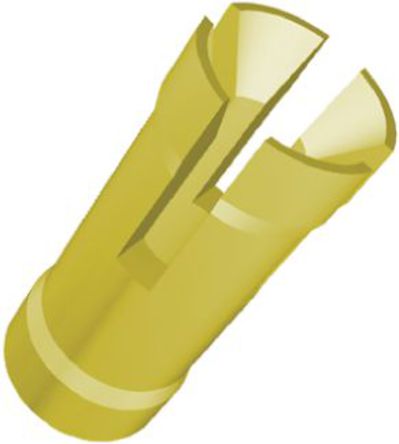

6-1437514-8

TE Connectivity HOLTITE® 系列分立式插座HOLTITE® 系列分立式插座触点为无焊接无剖面，用于插入印刷电路板上的电镀通使孔成为元件插座。 这些 HOLTITE® 分立式插座触点为圆锥形，在压合到位时会改变板上的通孔尺寸。 关于尺寸和镀层选项，请参见附加数据表。 库存号 718-5189 和 745-5044 是分离式插座，在聚脂薄膜软片盒中提供，具有 2.54mm 中心线和 7.62 mm 排至排间距。**附加数据表** --- **RS 库存号** | **制造商部件号** | **插座长度** | **孔尺寸** | **配接引脚直径** | **插座镀层** 680-1843 | 6-1437514-6 | 2.39mm | 1.04mm | 0.41 - 0.53mm | 镀金铍铜 718-5287 | 6-1437514-7 | 2.39mm | 1.04mm | 0.41 - 0.53mm | 锡镀铅铍铜 718-5280 | 1-1437514-3 | 2.54mm | 1.12mm | 0.76mm | 镀金铍铜 680-5117 | 2-1437506-4 | 3.45mm | 1.47mm | 0.51 - 0.76mm | 镀金铍铜 821-8868 | 6-1437514-8 | 3.45mm | 1.47mm | 0.51 - 0.76mm | 镀金铍铜 680-5126 | 2-1437506-7 | 3.45mm | 1.47mm | 0.64 - 0.89mm | 镀金铍铜 718-5284 | 8134-HC-8P2 | 3.45mm | 1.47mm | 0.64 - 0.89mm | 镀金铍铜 ### TE Connectivity 离散印刷电路板连接

HOLTITE® 系列分立式插座

HOLTITE® 系列分立式插座触点为无焊接无剖面，用于插入印刷电路板上的电镀通使孔成为元件插座。 这些 HOLTITE® 分立式插座触点为圆锥形，在压合到位时会改变板上的通孔尺寸。 关于尺寸和镀层选项，请参见附加数据表。

库存号 718-5189 和 745-5044 是分离式插座，在聚脂薄膜软片盒中提供，具有 2.54mm 中心线和 7.62 mm 排至排间距。

### TE Connectivity 离散印刷电路板连接

欧时:
Socket 1 POS Press Fit

得捷:
8134-HC-6P2=HOLTITE CONTACT 3.

艾睿:
Ideal for multiple wires which need to be connected this discrete socket 6-1437514-8 connector socket from TE Connectivity will exceed your needs. This SKT connector&s;s a single contact that is made out of beryllium copper and plated with gold over nickel. It has a straight body orientation. This is a 1-row connector. It has a socket type gender. This device has a maximum current rating of 5 A/contact. This connector socket has an operating temperature of -55 to 125 °C. This product is 3.56 mm long and 1.58 mm. It uses the press fit termination method.

Allied Electronics:
HOLTITE Contact; 3.56 Length; Gold Plated; Pack of 1000

Verical:
Conn Discrete Socket SKT 1 POS Press Fit ST Thru-Hole Loose

Newark:
# AMP - TE CONNECTIVITY  6-1437514-8  8134-HC-6P2=HOLTITE CONTACT 3.

MASTER:
8134-HC-6P2=HOLTITE CONTACT 3.

Powell:
8134-HC-6P2

Online Components:
8134-HC-6P2=HOLTITE CONTACT 3.

Electro Sonic:
8134-HC-6P2=HOLTITE CONTACT 3.
