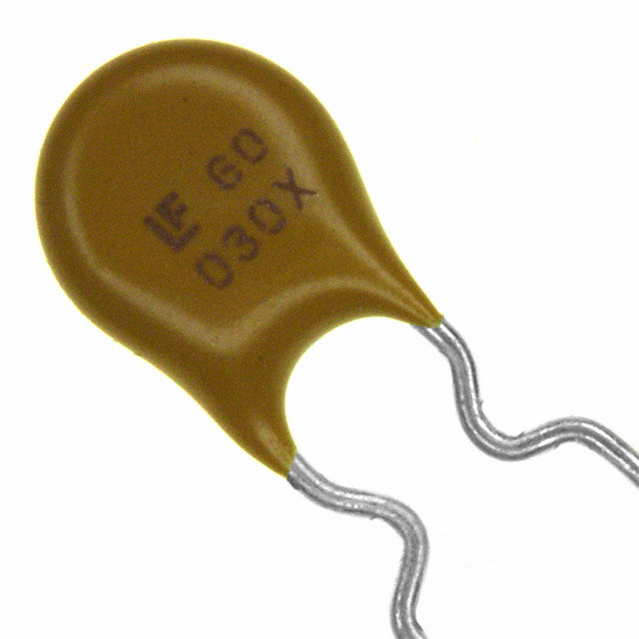

LITTELFUSE 60R030XU 自复式保险丝, PTC, 径向引线, 0.3A
聚合物 PTC 自恢复保险丝 60V 300 mA Ih 通孔 径向,圆片式
立创商城:
60R030XU
得捷:
PTC RESET FUSE 60V 300MA RADIAL
贸泽:
自恢复保险丝—PPTC 60V POLYFUSE .300A RADIAL LEADS
e络盟:
自复式保险丝PTC, 通孔, POLYFUSE 60R系列, 300 mA, 600 mA, 60 VDC, -40 °C
艾睿:
Do you need a more convenient and quicker way for your protected equipment to be restored into operation after a fuse burns out? Then this 60R030XU PTC resettable fuse from Littelfuse is perfect for you! This part has a lead diameter of 0.51 mm. This device has a maximum current rating of 40. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product is 3.1Max mm deep. This product&s;s terminal pitch is 5.1typ mm.
Chip1Stop:
PTC Resettable Fuse 0.3Ahold 0.6Atrip 60VDC 40A 0.49W 3s 0.88Ohm Radial 7.4 X 3.1mm Bulk Automotive
Verical:
PTC Resettable Fuse 0.3Ahold 0.6Atrip 60VDC 40A 0.49W 3s 0.88Ohm Radial 7.4 X 3.1mm Bulk Automotive
Newark:
# LITTELFUSE 60R030XU POLYFUSE, PTC, RADIAL, 0.3A
儒卓力:
**300mA resettable PTCs 60V BULK **
额定电压DC 60.0 V
工作电压 60 VDC
跳闸时间 3 s
额定电流 40 A
耗散功率 0.49 W
电阻 2.1 Ω
保持电流 300 mA
跳闸电流 600 mA
额定电流Max 40 A
保持电流Max 300 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 60 VDC
额定电压 60 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 12.7 mm
宽度 3.1 mm
高度 3.1 mm
封装 Radial, Disc
厚度 3.05 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
