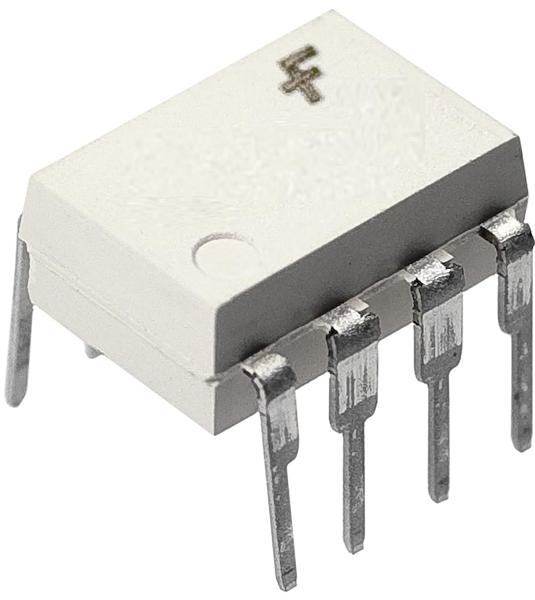

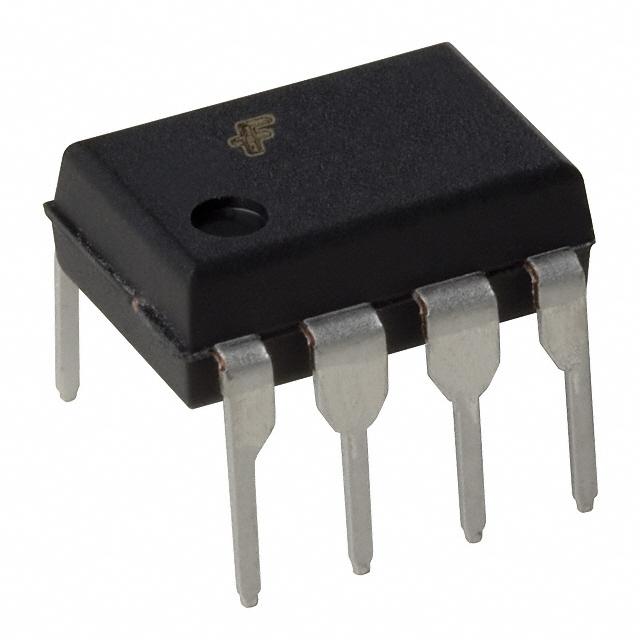

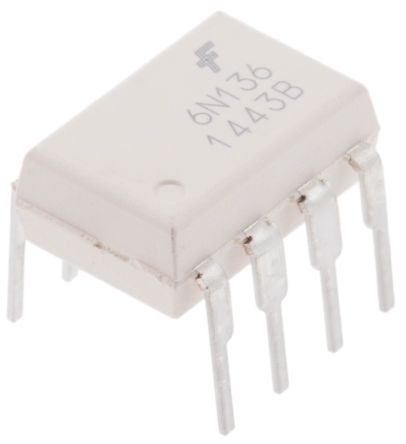

6N136M

FAIRCHILD SEMICONDUCTOR  6N136M  光电耦合器, 晶体管输出, 高速, 1通道, DIP, 8 引脚, 25 mA, 5 kV, 19 %

The is a 1-channel 8-pin high speed Transistor Optocoupler consists of an AlGaAs LED optically coupled to a high speed photodetector transistor for each channel. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocoupler by reducing the base-collector capacitance of the input transistor. It is suitable for line receivers, pulse transformer replacement, output interface to CMOS-LSTTL-TTL and wide-bandwidth analogue coupling.

.

1Mbps High speed

.

890V Maximum working insulation voltage

.

6000V High allowable overvoltage

.

0 to 70°C CTR guaranteed

.

10kV/µs Superior CMR
